DJI ZENMUSE L3 LiDAR

Introducing the DJI Zenmuse L3, a high-performance long-range aerial LiDAR system designed for surveyors. With a 950 m scanning range and dual 100 MP mapping cameras, the L3 captures complex environments with centimetre-level accuracy and detailed visual clarity.

Paired with DJI Terra, this integrated payload streamlines your workflow from data capture to processing, delivering dense, colourised point clouds faster and more efficiently than ever.

Talk to Sales

FEATURES

Up to 950m Scan Range

Dual 100MP Mapping Cameras

Up to 16 Returns

Up to 2Mhz (2 Million) Points Per Second Laser Pulse Rate

Accuracy at 120m Flight Altitude:

Vertical Accuracy: 3 cm (RMSE)
Horizontal Accuacy: 4 cm (RMSE)

High Accuracy IMU

Improved (smaller) Beam Divergence vs the L2

RTK and PPK

ACCURACY MEETS EFFICIENCY

DJI Zenmuse L3 is a high-precision LiDAR payload designed for the Matrice 400, delivering exceptional point cloud accuracy and up to 100 km² of coverage per day—perfect for efficient, large-scale surveying projects.

Boosted Intelligence and Operational Efficiency

Hardware Performance Redefined

The Zenmuse L3 integrates 1535 nm long-range LiDAR, dual 100 MP RGB cameras, and a high-precision POS system into a compact three-axis gimbal, delivering exceptional surveying performance in a small, lightweight package.

950m Long-Range LiDAR

Long Range, Wide Coverage

The Zenmuse L3 offers an impressive 950 m detection range, even on low-reflectivity objects (as little as 10%), ensuring reliable performance in bright ambient light. Its adjustable pulse rate optimises power output for various scenarios, supporting typical flight altitudes of 300–500 m. This extends single-flight coverage, boosting mapping efficiency for large-scale surveying projects.

Small Spot, High Energy

With a reduced beam divergence of just 0.25 mrad (1/e²), the Zenmuse L3 produces a laser spot approximately one-fifth the size of the Zenmuse L2. This high precision captures fine details—like power lines and tree branches—with exceptional clarity. The concentrated energy also improves vegetation penetration, generating denser ground points for accurate terrain modelling in complex environments.

High Pulse Rate, Multiple Returns

The Zenmuse L3 delivers a maximum pulse frequency of 2 million pulses per second and supports up to 16 returns, enabling exceptional spatial reconstruction. Its adaptable settings allow operators to adjust point cloud density and penetration for precise mapping or surveying in complex, vegetated environments.

Scanning Modes

The Zenmuse L3 offers three specialised scanning modes to suit a variety of operational scenarios:

Linear Mode: Provides uniform point cloud distribution, ideal for high-accuracy terrain mapping.
Star-Shaped Mode: Balances multi-angle scanning with strong penetration, perfect for surveying forests or dense urban areas.
Non-Repetitive Mode: Maximises scan angles and coverage, capturing detailed structures such as power lines and complex infrastructure.

DUAL 100MP RGB MAPPING CAMERA SYSTEM

Previous Next

Dual 100MP RGB Mapping Cameras

Powered by dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter, the Zenmuse L3 delivers a major boost in mapping accuracy and imaging efficiency. Through pixel binning, it outputs an effective 25MP resolution with larger pixels, providing enhanced colour fidelity and sharp, clear imagery—even in challenging low-light environments.

107° Ultra-Wide FOV

With a wide 107° horizontal field of view (FOV), the Zenmuse L3’s dual RGB mapping cameras capture more terrain in every frame. This broad perspective enables efficient collection of both Digital Orthophoto Maps (DOM) and Digital Elevation Models (DEM) in a single flight—even with just 20% LiDAR side overlap—significantly increasing overall mapping efficiency.

The Zenmuse L3 sets a new benchmark for aerial surveying, delivering superior point cloud accuracy, enhanced RGB clarity, and significantly faster data acquisition.
Optimised for the DJI Matrice 400, it enables up to 10km² of coverage per flight and as much as 100km² per day, providing a streamlined, unified workflow for high-accuracy, large-scale mapping projects.

HIGH ACCURACY

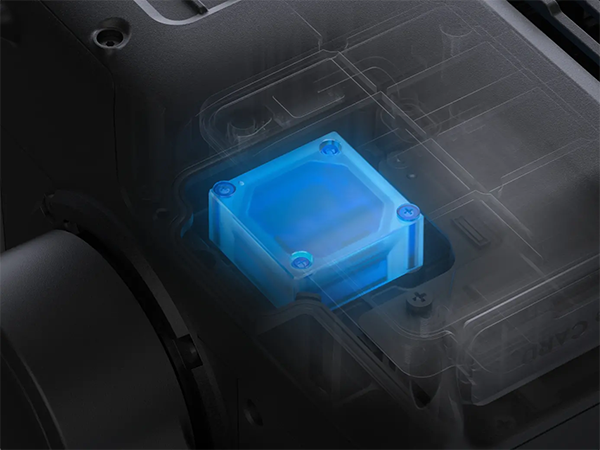

Proprietary High-Precision System
The enhanced high-precision POS system delivers outstanding orientation accuracy, achieving 0.02° heading and 0.01° pitch precision after post-processing. Paired with a self-developed LiDAR module offering 5mm ranging repeatability at 150m and microsecond-level time synchronisation, the Zenmuse L3 ensures reliable, survey-grade results. Each unit undergoes strict factory calibration to maintain consistent performance.

LiDAR Data Accuracy
The Zenmuse L3 delivers outstanding vertical accuracy at multiple flight altitudes—better than 3 cm at 120 m, 5 cm at 300 m, and 10 cm at 500 m—meeting the demands of 1:500, 1:1000, and 1:2000 scale mapping projects with ease. It also generates a point cloud with half the thickness of the Zenmuse L2, providing cleaner, more precise data for detailed analysis and high-accuracy surveying applications.

Photogrammetric Accuracy
With dual 100MP RGB mapping cameras, the Zenmuse L3 captures high-detail imagery, achieving a 3 cm GSD even from 300 m flight altitudes. Real-time position synchronisation further enhances accuracy, enabling precise photogrammetric mapping without Ground Control Points (GCPs) and substantially streamlining field and processing workflows.

High Penetration & High Ground Point Density
With its reduced laser spot size and increased single-pulse energy, the Zenmuse L3 achieves superior vegetation penetration and significantly higher ground point density. This capability results in more complete terrain data, ensuring exceptional surface fitting accuracy and robust terrain reconstruction across challenging, vegetated environments.

High Efficiency — Up to 100 km² Per Day
Paired with the DJI Matrice 400, the Zenmuse L3 sets a new standard for productivity. A single flight at 300 m altitude can capture up to 10 km² of data, enabling total daily coverage of up to 100 km² for large-scale surveying and mapping projects.

Multiple Deliverables in One Flight
The system simultaneously collects LiDAR and RGB data, allowing you to generate a wide range of outputs—including Digital Elevation Models (DEM), Digital Orthophoto Maps (DOM), and additional geospatial deliverables—all from a single mission.

DATA ACQUISITION

Previous Next

Cloud-Based Point Cloud Measurement

Fully integrated with DJI FlightHub 2, the Zenmuse L3 enables real-time visualisation and management of point cloud data. Operators can quickly create accurate flight routes, mark and share key points of interest, and perform detailed line and area measurements—all within a unified cloud platform.

Power Line Follow

DJI Pilot 2 simplifies pre-flight operations by intelligently suggesting optimal parameters based on user-defined routes. It also generates Density Profile and point cloud distribution charts, allowing users to preview expected point cloud coverage and ensure complete data capture before takeoff.

PPK Data Processing

With built-in PPK support for D-RTK 3 and standard base stations, DJI Terra delivers reliable accuracy anywhere. The platform handles local PPK for both RGB and LiDAR, providing centimetre-level positioning even when network connections or real-time RTK are unavailable.

LiDAR Gaussian Splatting

DJI Terra unlocks new levels of realism through Gaussian Splatting fusion. This technique combines Zenmuse L3 point clouds with RGB imagery to produce incredibly detailed, lifelike 3D models. This leap in visual quality broadens the operational scope of LiDAR, delivering superior outputs suitable for the most demanding mapping scenarios.

Fusion-Based Modelling

Streamline your workflow with DJI Terra’s advanced integration capabilities. By fusing LiDAR and RGB data from a single mission, the platform produces point clouds, 2D maps, and 3D meshes concurrently. This results in significantly richer models with superior detail on complex geometries, serving the critical needs of infrastructure, energy, and transportation professionals.

Data Processing

Data Application

Smart Filter

DJI Modify utilises advanced semantic classification to automatically distinguish point cloud data into categories like ground, vegetation, buildings, and power infrastructure. Post-classification, users can leverage the Quick Selection and Structure Selection tools to efficiently adjust categories, ensuring maximum classification accuracy and operational efficiency.

Profile Tool

Use DJI Modify’s Profile tool to flexibly isolate cross-sections for analysis. This feature provides an intuitive way to examine terrain variation, elevation profiles, and detailed structural features within your model.

Comprehensive Output Capabilities

Together with DJI Modify, the Zenmuse L3 delivers exceptional output versatility. The platform automates the creation of semantic point clouds, DEMs, TINs, point grids, and contour lines. With multi-layer visualisation support, these results are ready to meet the diverse needs of modern engineering and CAD workflows.

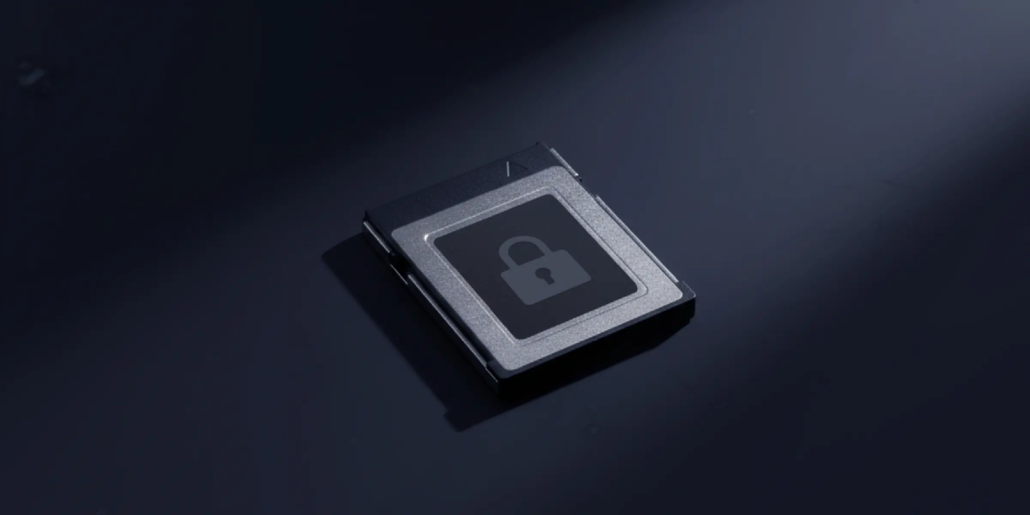

Data Security

The Zenmuse L3 ensures complete confidentiality with CFexpress™ card encryption to prevent data theft. Combined with the DJI Matrice 400, which uses AES-256 encryption for secure data transmission and offers instant one-click log clearing, your sensitive survey data remains fully protected.

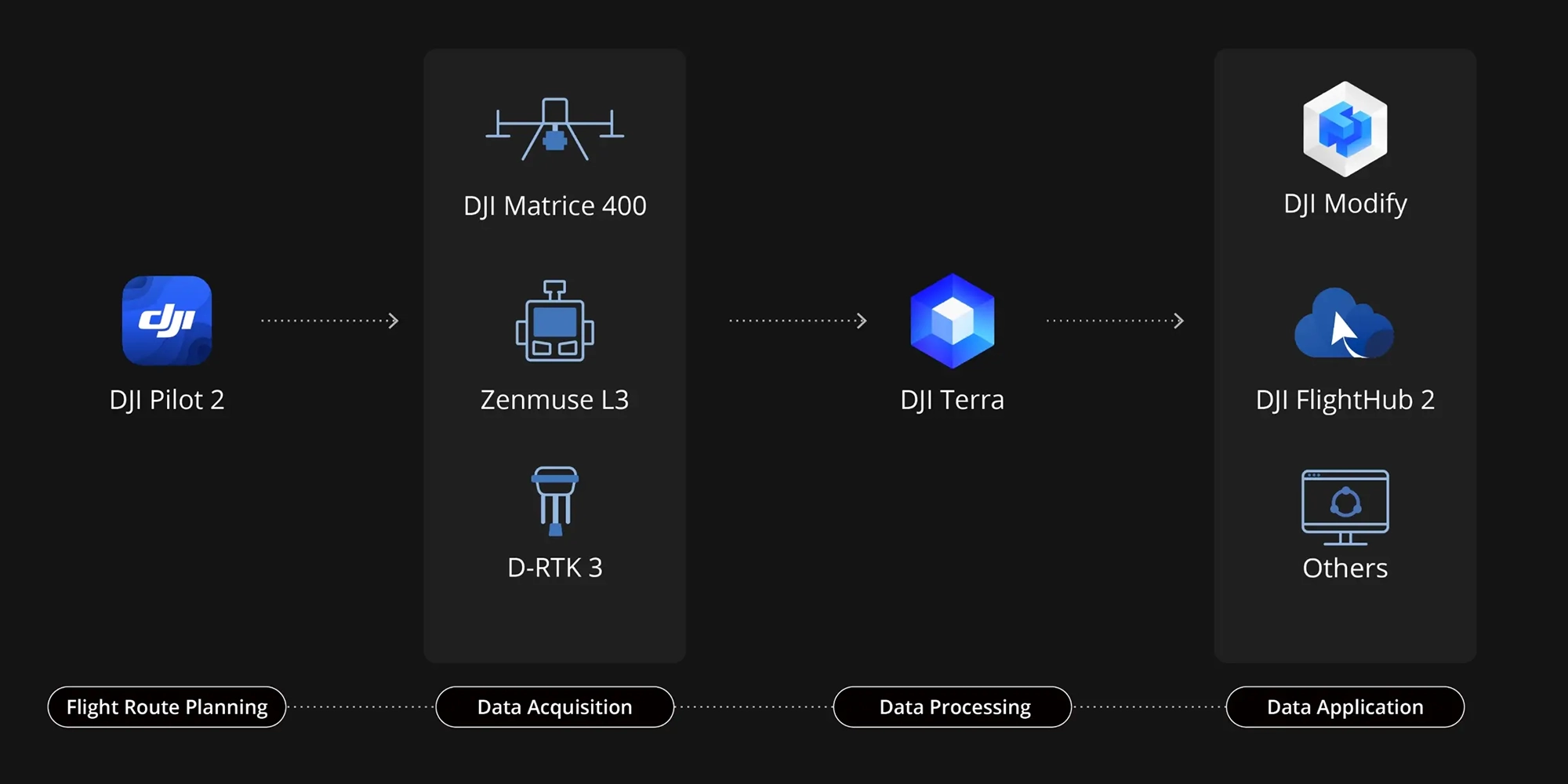

END-TO-END SOLUTION

Delivers a complete workflow covering data capture, processing, and application.

The Zenmuse L3 unifies data capture, processing, and application into a single, seamless workflow, removing the complexity of traditional multi-platform setups. This streamlined system is intuitive to operate, enabling professionals to efficiently manage a wide variety of mapping missions with precision and ease.
