Wireless Sensors

Wireless

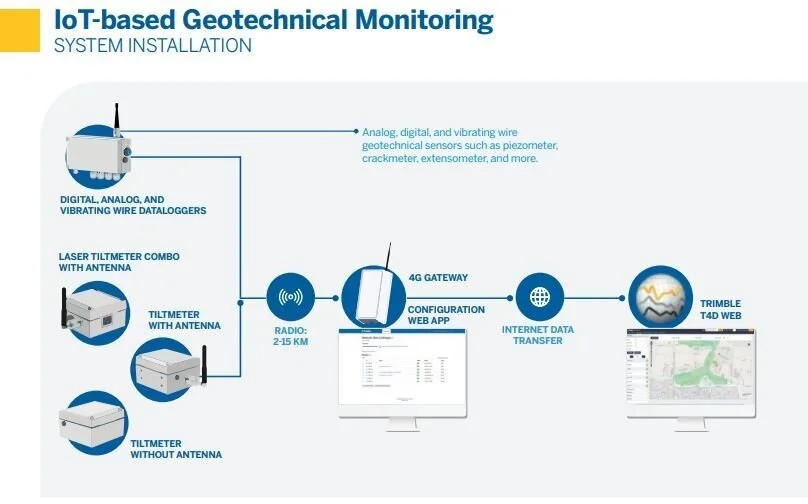

Vibrating Wire

Wireless Data Loggers – Edge Devices

Overview

The vibrating wire (VW) one-and-five channel data loggers easily connect vibrating wire instruments such as piezometers, load cells, strain gauges and pressure calls to the internet.
The vibrating wire data loggers are autonomous battery-powered devices with C-size batteries that can last up to 10 years with minimal to zero maintenance required. The units may also be used as standalone loggers for manual monitoring and can be easily configured and connected with a USB cable and an Android phone.

Vibrating Wire Datasheet

Description

Vibrating wire sensors are widely used in geotechnical, hydrological, and structural monitoring because of their robustness and long-term stability. The VW data loggers provide accurate measurements of the vibrating wire sensors and their thermistors.
The data loggers have an internal barometer that collects and transmits barometric pressure data with each reading. This compensates for changes in atmospheric pressure that vibrating wire sensors, particularly piezometers, are usually subjected to in various applications. This feature also eliminates the need for an external barometric sensor in order to acquire accurate measurements.

Construction sites and mines are constantly changing and sensors may sometimes get disconnected due to a cut cable or other physical damages. VW data loggers are capable of detecting if a sensor is properly connected and if not, the readying is discarded to avoid false measurements.

LS-G6-VW-MON
The 5-channel data logger may be used for scenarios in which one borehole contains multiple sensors. This can be the case in mining or civil works. for example, where up to 5 piezometers or multi-point borehole extensometers may be installed in a single borehole. It is also ideal for groups of sensors like strain gauges and load cells with 3 to 5 sensors.

LS-G6-VW-1M-MON
The aluminium alloy box version is offered with an external antenna which improves the range for long-distance applications such as strain gauges or pore water pressure monitoring.

Features

Accurate vibrating wire measurement.
Integrated barometer.
Long battery life (>7 years @ 1h sampling rate).
Sensor detection.
Two versions are available – 1 and 5 channels.
Durable and versatile.

Software

User-friendly Android configuration app included.
Web browser-based software.
Single-gateway network setup (data server and radio server hosted in the gateway and data access through standard CSV downloads. FTP push. Modbus TCP and API REST).
Multi-gateway network setup and advanced features with data access via standard CSV downloads. FTP push. API REST and MOTT push*. MQTT available upon request.

Applications

Foundations and deep excavations.
Tunnels.
Embankments and landfills.
Mines.
Bridges and structural health monitoring.
Landslides and slope stability.

Advantages

High reliability and robustness.
Long-range communications (up to 15 km).
Robust, small, and weather-proof box.
Easy configuration.
Connectivity for individual sensors and most common borehole installations.
Proven track record, a pioneer in the field.

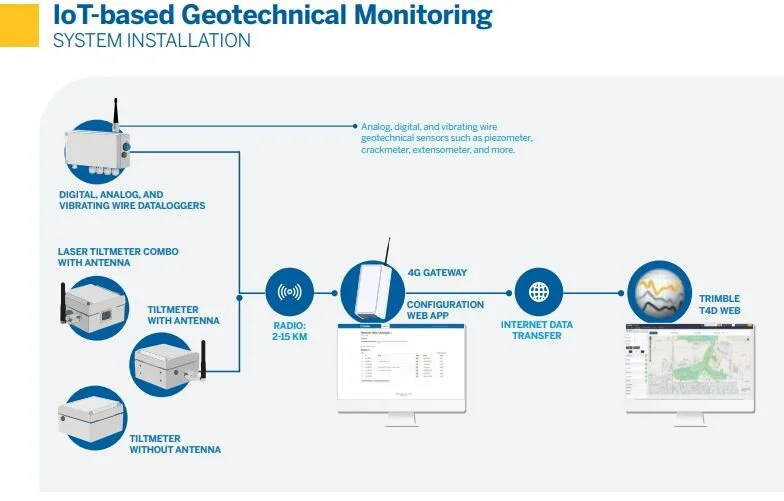

Wireless Tiltmeters

LS-G6-INC15-MON / LS-G6-INC-I-MON

Overview

Tiltmeters for monitoring applications provide measurements of changes from the vertical level, either on the ground or in structures. This makes them key sensors to monitor inclinations, movements and differential settlements of slopes or infrastructures.

Wireless Tiltmeters Datasheet

Description

The wireless tiltmeter combines an extremely accurate dual axis sensor with the Loadsensing long-range radio wireless monitoring system which ensures connectivity up to 15 kms with line-of-sight.
The data collected is stored on board the tiltmeter and shared wirelessly to the closest Trimble gateway. A single gateway can support hundreds of tiltmeters.

The tiltmeters, can be programmed via an Android based app, in a few simple steps.

The tiltmeter is extremely low power and can operate for several years unattended replying solely on the replacement internal batteries.

The unit is now available with an external antenna for full range capabilities or with an internal antenna for applications as railway tracks where its important to minimise the potential risk for external parts.

Features

Wireless sensor.
High accuracy and repeatability.
Long battery life (>5 years @ 1 h sampling rate).
Reduced size (103 x 100 x 61 mm, internal antenna version).
Two versions available – external (LS-G6-INC15-MON) and internal (LS-G6-INC15-I-MON) antenna.
Durable and versatile.

Software

User-friendly Android configuration app included.
Web Browser software.
Single-gateway network setup (dataserver and radio server hosted in the gateway and data access through standard CSV downloads, FTP push, Modbus TCP and APIREST).
Multi-gateway network setup (cloud-based network management software and advanced features with data access via standard CSV downloads, FTP push, API REST and MQTT push.)* *MQTT available on request.

Applications

Railway track monitoring.
Building response to tunnelling and excavation-induced ground movements.
Foundations and deep excavations.
Landslides and slope stability.
Bridge and structural health monitoring.
Embankments.

Advantages

Highly accurate and reliable biaxial tilt sensor.
Long-range communications (up to 15 km).
Low-power, long battery life (over 5 years).
Robust, small and weather-proof box.
Easy configuration.
Proven track record.

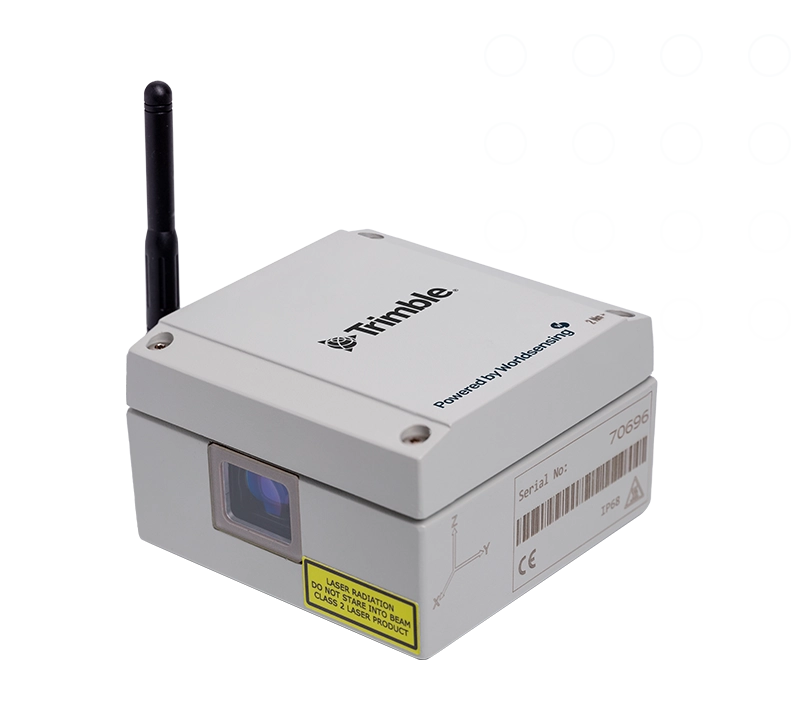

Wireless Laser + Tiltmeter

LS-G6-LAS-TIL90-MON

Overview

2-IN-1 Wireless Laser Distance Meter and Tiltmeter.

The LaserTilt90 wireless sensor is a 2-in-1 laser distance meter and tiltmeter. The laser measures the relative distance between pairs of reference points. One of the two points can be a natural surface or target foils while the node can be placed at the other end point. Meanwhile, the tiltmeter provides measurements of changes from the vertical level, either on the ground or in structures and is used to monitor inclinations, movements and differential settlements of slopes or infrastructures.

Wireless Laser + Tiltmeter Datasheet

Full description

Network Management

The LaserTilt90 is capable of transmitting data via long-range radio to a gateway connected to the Internet. One gateway can support hundreds of Loadsensing edge devices in the same network that are also measuring other sensors installed in the monitoring sections (borehole extensometers, pressure cells, load cells, strain gauges etc). It can easily be configured and connected with a USB cable and an Android phone. The device network can also be easily managed through the Connectivity Management Tool.

Work without disruptions

Measurement of tunnel convergence is one of the most important controls of the NATM (New Austrian Tunnelling Method) construction. Portable devices like tape extensometers, levels and temporarily installed total stations allow sporadic measurements. On the other hand, one of the most commonly used methods, the measuring tape, disrupts construction activities due to the use of aerial work platforms.

The LaserTilt90 may be easily relocated along the convergence cross sections up to the excavation front of until the measured relative displacements are stabilised when the required frequency of measurements is reduced. It can also be used when permanent monitoring is required. The wireless sensor can also measure deformations in underground excavations and mining without causing work disruptions and delays.

Features

Wireless sensor, An integrated unit (2-in-1 sensor + data logger).
Accurate distance measurement through a visible Laser Class II laser with 655 nm.
3-axis inclination with respect to gravity’s direction and a range of 90 degrees.
Long battery life (up to 8.5 years @6 h sampling rate).
Long-range communications (up to 15 km).
High repeatability.
Robust, small and weather-proof box.
Easy configuration.

Applications

Tunnel and mining convergence monitoring.
Deformations in underground excavations.
Remote monitoring of slope movements.
Fracture and faults surveillance.
Bearing and expansion joint movements.
Monitoring displacement in structures and buildings.
Bridge and structural health monitoring.
Measurement of settlement at a single point.

Digital Logger

LS-G6-DIG-2-MON

Overview

Edge Devices

The Digital logger brings the advantages of electronics to the geotechnical world. It can easily connect a wireless network in-place inclinometres (IPIs) on a chain in a hole or excavation, multipoint borehole extensometers (MPBX) and other sensors from leading manufacturers. It transforms manual and sporadic data collection to a more regular and automatic process, making it the most cost-efficient way to capture data from any environment.

Digital Logger Datasheet

Full description

It is capable of transmitting data via long-range radio to a gateway connected to the Internet up to 15 kilometres away. In-place inclinometers enable precise, remote, continuous and automatic monitoring of ground movement. The digital loggers are autonomous battery-powered devices with C-size batteries thus avoiding the need of solar power systems in most cases. Beyond IPIs, other digital sensors used in geotechnical, structural and environmental monitoring can also be connected by the digital logger.

The digital logger can be easily configured and connected with a USB cable to an Android phone with the configuration software Android app. The app includes features adapted to each supported sensor such as auto-setup, set up of a voltage threshold to check the power supply received by the sensor, set up of addresses, checking of readings in the field and others. The data collected are stored in the digital logger and shared wirelessly to the closest Trimble gateway. A single gateway can support dozens of nodes. The units may also be used as standalone loggers for manual monitoring. The digital logger is rapidly evolving and integrating new sensors so it is recommended to constantly check for device updates.

Features

Compatibility with digital sensors like: – In-place inclinometers from Sisgeo, Geosense, DGSI Slope, RST Instruments and Geokon. – Borehole extensometers from MDT and Sisgeo. – Strings of temperature probes. – Water level sensors, water quality probes and weather transmitters.
Low-power, long battery life. Mostly does not require external power.
Durable and versatile.

Software

User-friendly Android configuration app included.
Web browser-based software.
Single-gateway network setup (dataserver and radio server hosted in the gateway and data access through standard CSV downloads, FTP push, Modbus TCP and API REST).
Multi-gateway network setup and advanced features with data access via standard CSV downloads, FTP push, API REST and MQTT push.*
* MQTT available upon request

Applications

Lateral ground movement in and around tunnels and deep excavations.
Lateral ground movement of tailings dams and embankments.
Landslides and slope stability.
Ground movement around tunnels and underground excavation.
Settlement and heave under embankments, tanks, and landfills.
Water quality and high precision level monitoring.

Advantages

High reliability and robustness.
Long-range communications (up to 15 km).
Robust, small and weather-proof box.
Easy configuration.
Connectivity for strings of digital sensors from major geotechnical and structural instrument manufacturers.
Proven track record, pioneer in the field.

4G Rugged Gateway – Edge

Overview

Connectivity
With Internal or External Antenna

The 4G rugged gateway is part of the connectivity portfolio. It is an outdoor LoRa gateway equipped with an internal antenna and a 4G worldwide module with 3G/2G fallback. It is suitable for a wide variety of projects: construction areas, tailings dams, open pits, bridges, railways, roadways, soil consolidation projects and others.

4G Rugged Gateway Datasheet

Full description

Features

External waterproof connectors (RJ45, SIM card) eliminating the need to open the casing during installation.
Easy installation mounting kit.
Integrated internal antenna for GPS, 4G and LoRa (peak gain=2,6 dBi), external LoRa antenna 3dBi or 6dBi available as options.
USB (type C) connector for local access.
Faster processor (operating in a singlegateway architecture, it can manage up to 50 data messages per minute).*
Compatible with Trimble 4D Control software for analysis and visualisation.

*Contact us if your monitoring plan requires more than 8 messages per minute.

Connectivity

ISM Sub 1 GHz band, sensitivity: down to -137 dBm (SF11).
Integrated internal antennas GPS, 4G, LoRa (peak gain=2,6dBi).
DDRAM 256MB, 8GB eMMC (6GB available for user).
GNSS receiver (GPS, GLONASS, QZSS & SBAS).

Power

Powered by: – PoE both mode A and mode B (802.3af specifications). – ± 48VDC through RJ45 (isolated power).
Mean power consumption: 4.5 watts.
PoE injector for indoor use included in the kit.

Mechanical

Size: 265 x 165 x 100 mm (without external LoRa antenna).
Weight: 1.4 kg (including mounting kit).
IP67 aluminium (back), polycarbonate (front), Inox (mounting kit).
Operating range: –40 °C to +60 °C.
Two LEDs: 1 x green LED for power, 1 x red LED for system status.
SIM card slot (mini-SIM format).

Network Interfaces

10/100 Ethernet WAN (RJ45 PoE).
Integrated 4G modem & antenna with worldwide LTE, UMTS/HSPA+ and GSM/ GPRS/EDGE coverage.

Analog 4-channel

Overview

Edge Devices – Wireless Data Loggers
LS-G6-ANALOG-4-MON

The Analog data logger admits most inputs from analog sensors, such as voltage, 4-20mA, potentiometer, FWB, thermistor or PT100, allowing it to easily connect load cells, strain gauges and pressure cells to the internet.

Analog 4-channel Datasheet

Full description

It transforms manual and sporadic data collection to a more regular and automatic process making it the most cost-effective way to capture data from any environment. It is capable of transmitting data via long-range radio to a gateway connected to the Internet up to 15 kilometres away. One gateway can also support dozens of data loggers in the same network through a star network topology. It has an internal C-size battery that can last up to 10 years with minimal to zero maintenance required.

The units are easy to deploy, very robust and do not require recasing as they already hold relevant certifications. The data logger is IP67 certified and tested from –40 °C to +80 °C. It can also be used as a standalone logger for manual monitoring and can be easily configured and connected with a USB cable and an Android phone.
