ComNavTech LS600 Laser Scanner

Compact, powerful, and fast. When you’re facing tight schedules and even tighter spaces, the LS600 is the tool that gets the job done—quickly.

In industries where data precision and operational efficiency are essential, quickly capturing complex environments is a key advantage. The CommNavTech LS600 SLAM System is purpose-built to meet this need. Designed for professionals who must scan areas inaccessible by traditional methods, the LS600 is a versatile, reliable addition to any scanning fleet, enabling you to approach every project with confidence and efficiency.

Talk to an Expert LS600 Brochure

Scan any environment with the speed and flexibility of the ComNavTech LS600:

Accelerate Your Data Collection
Select from 16 or 32-line LiDAR configurations to capture 640,000 points/second at a range of up to 300m, dramatically speeding up fieldwork in any environment.
Maintain Accuracy Without GPS
When working indoors, underground, or anywhere GNSS is unavailable, the LS600 maintains absolute accuracy by seamlessly tying into known on-site control points, ensuring a continuous and reliable workflow
Adapt to Any Project, Anywhere
The LS600 is engineered for true all-terrain performance. Deployed via a backpack or pole mount, it excels in any environment, making it the ideal go-anywhere solution for a diverse range of applications from urban planning to mining surveys

Scan with Confidence in Any Condition
The system’s multi-sensor fusion combines LiDAR, IMU, GNSS, and cameras to ensure robust and reliable performance, even in challenging low-light, GNSS-denied, or tight-access environments
Bring Your Scans to Life with Vivid Color
The system’s dual 48MP cameras and visual SLAM technology work in tandem to generate stunning, photorealistic point clouds, enriching your data with true-to-life colour and enhanced scene realism
Create Polished Deliverables with Ease
The RealEditor software provides a seamless post-processing workflow. It uses automated tools for stitching, denoising, and user removal to transform raw field data into high-quality, final results without the typical complexity or headaches

Achieve Centimetre-Level Accuracy
The built-in RTK module is powered by an advanced multi-constellation GNSS engine, delivering robust real-time corrections for absolute accuracy, even in complex signal environments
Simplify Your On-Site Workflow
The LS600 streamlines fieldwork with intuitive, flexible controls. Start scanning with a single onboard button for quick operation, or use the companion Android app for full remote access, making data collection remarkably straightforward and efficient

The ComNavTech LS600 sets a new standard in mobile mapping. It combines cutting-edge technologies, including robust SLAM algorithms for continuous tracking, an integrated RTK module for centimetre-level georeferenced accuracy, and dual wide-angle cameras that add vivid, realistic colour to your point clouds.

This advanced multi-sensor system—integrating LiDAR, IMU, and cameras—delivers outstanding performance and reliability across all environments, from intricate indoor spaces to large-scale outdoor sites.

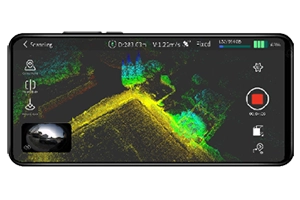

ScanMaster: Real-Time Field Control

In the field, the ScanMaster Android app puts full control in your hands. Use your mobile device for real-time previews, remote operation, control point identification, and RTK configuration while you scan.

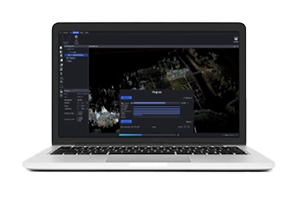

RealEditor: Powerful Office Post-Processing

Back in the office, RealEditor software delivers powerful post-processing. Its simple workflow handles SLAM optimisation and transformations, preparing high-quality point clouds for packages like Trimble Business Center.

TBC: Your Bridge to Final Deliverables

Once refined, Trimble Business Centre is the ideal next step to tie to other data and point cloud sources to then Classify Regions, and produce high quality final deliverables.

Data Scans

The LS600 enables fast, high-precision scanning without compromising on detail. Its lightweight, all-in-one design ensures effortless operation, while advanced technology produces richly detailed colour point clouds and simplifies post-processing.

Ideal for applications from surveying and urban planning to mining and emergency response, the CommNavTech LS600 is the ultimate solution for capturing reality quickly, comprehensively, and accurately.

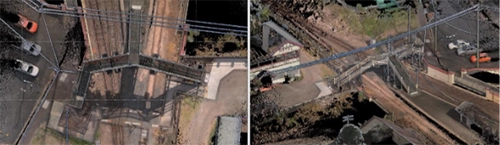

Rail overpass captured in a single crossing over and underneath to ensure complete capture.

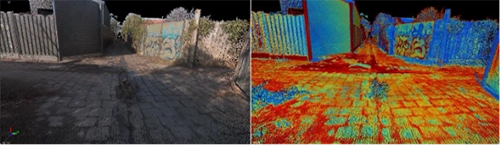

Multiple options for outputs of the point cloud data like True colour and LIDAR intensity return.

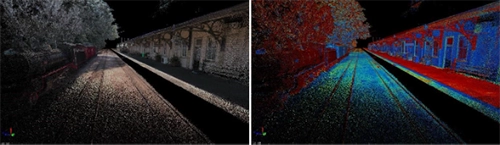

The LS600 produces detailed results, capturing the entire environment. Different surfaces and textures are captured and visible with ease.

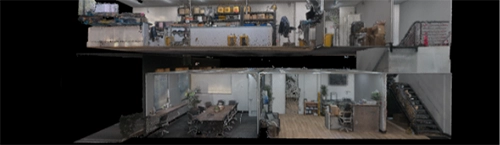

Internal scanning made easy in one single run. Indoors and outdoors, the LS600 ties it all together with ease.

A Transformative Tool for Modern Professionals

The ComNavTech LS600 is designed to revolutionise your workflow, delivering fast, dependable data with ease. It provides a survey-ready solution for demanding applications in engineering, heavy civil construction, surveying, and mining.
