Rail Solutions

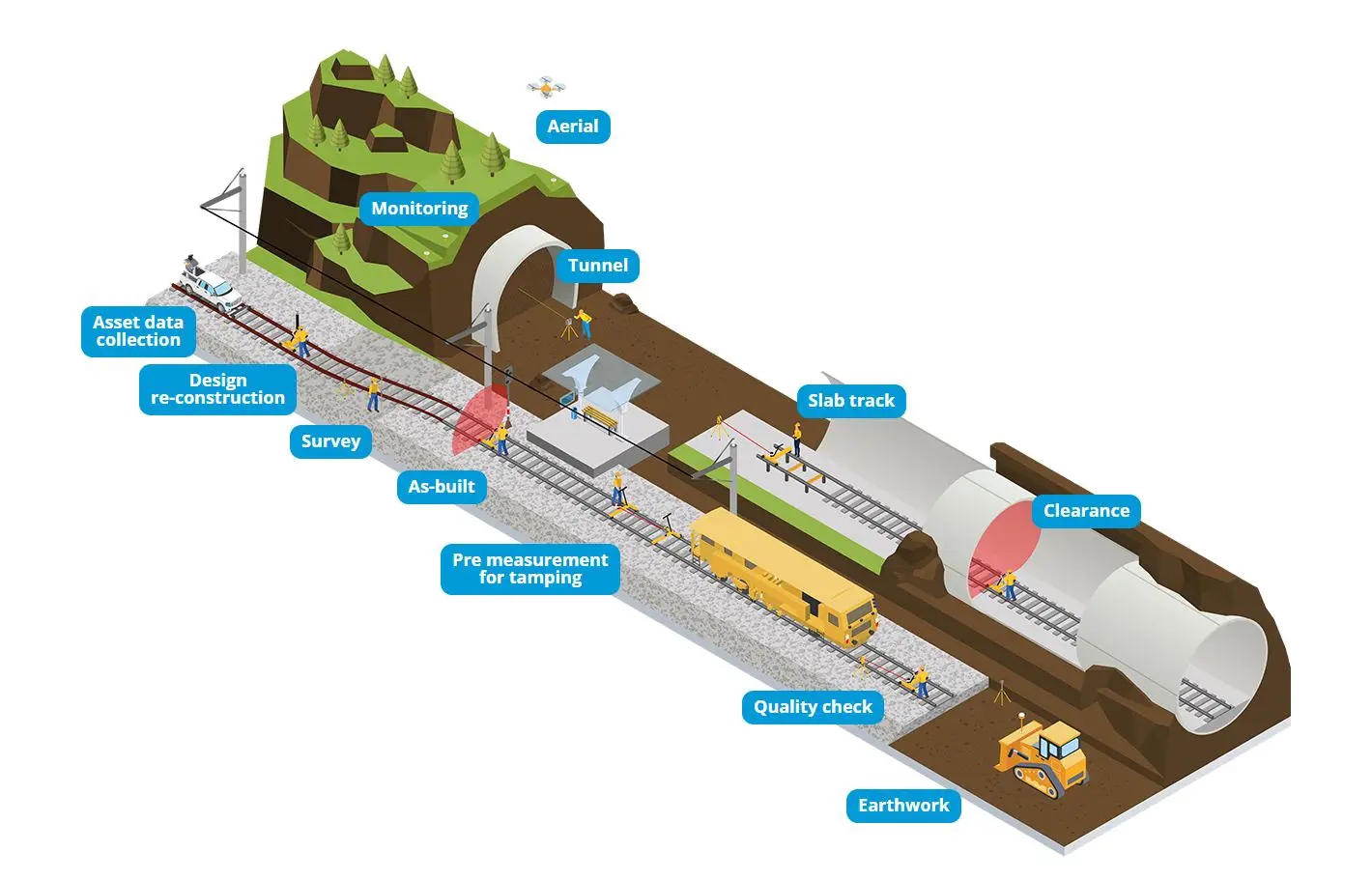

Rail

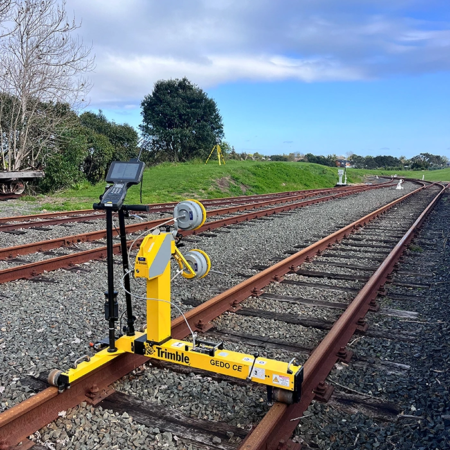

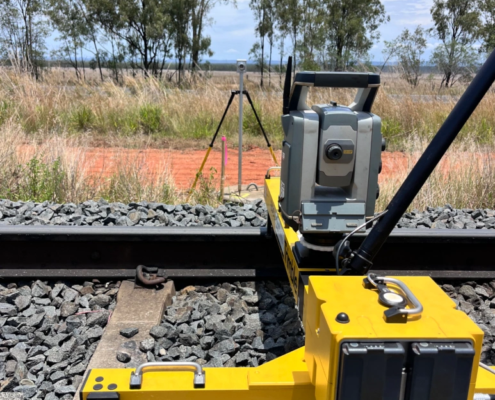

Trimble GEDO Rec

System for Track Documentation

Overview

The Trimble GEDO system in combination with the Trimble GEDO Rec field software is a fast, efficient tool to measure, record and document detailed information about existing track. With Trimble GEDO Rec, you can quickly survey existing lines without the need for alignment data.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

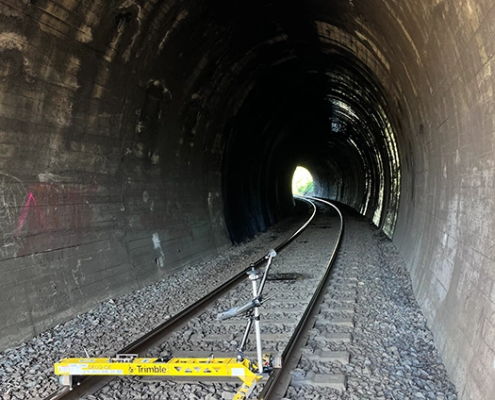

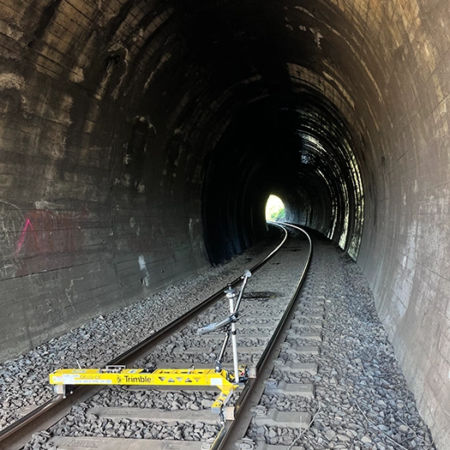

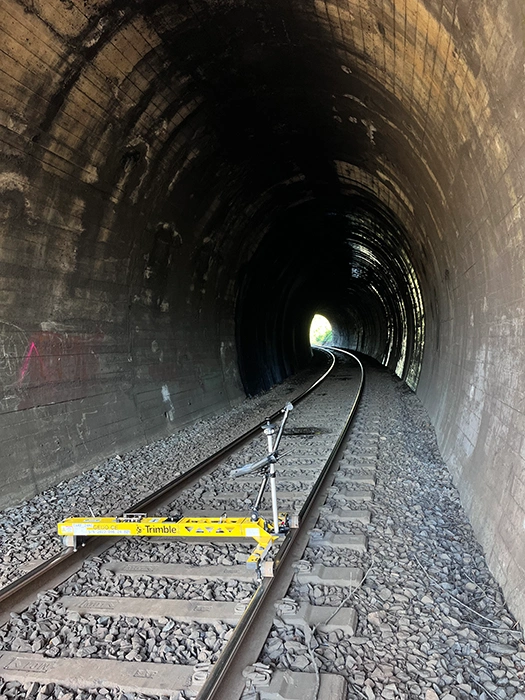

In a single operation the Trimble GEDO Rec captures the 3D coordinate position of the track, together with gauge and cant. The information can be used for GIS, redesign and quality control.

KEY BENEFITS

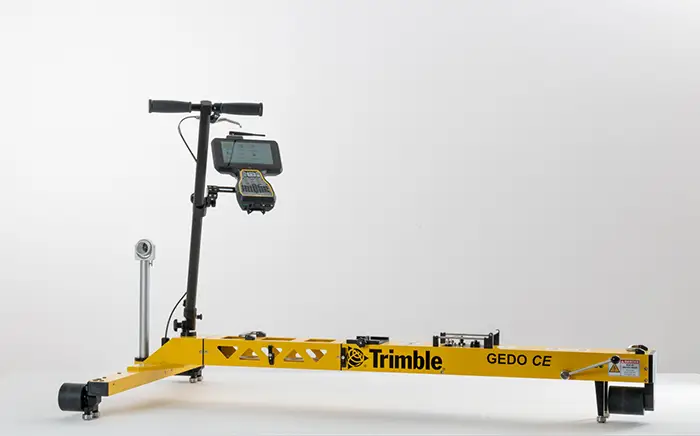

Simple, self-contained trolley captures track position, gauge and cant in a single operation
Measure long portions of track without disruption to normal rail traffic
Optical or GNSS positioning ensures confidence in location and track conditions
Fast operation reduces costs and crew size. Capture detailed information on up to 3,000 meters of track in one hour using GNSS, and more than 1,000 meters per hour with total stations
Optimise field work by merging results from multiple surveys
Export results to GIS and rail design software, and compare existing conditions to design alignment

Trimble GEDO Track

System for Slab Track

Overview

Constructing slab track calls for fast, precise measurements and immediate feedback. Trimble GEDO system in combination with the Trimble GEDO Track field software is a simple, integrated system to measure for precise adjustments, inspections and quality checks.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

In a single operation, the Trimble GEDO captures the 3D coordinates of the track, together with gauge and cant. The information is compared to the design, and offsets and correction values are displayed in the field, where work crews make the necessary adjustments. With its precision measurement systems, Trimble GEDO Track is suitable for conventional and high-speed rail construction.

KEY BENEFITS

Reduce construction time and costs with immediate comparison of measured data to design
Verify track geometry with accuracy and confidence.
Precise optical positioning and a simple, self-contained trolley provide flexibility and reliable results
Capture track 3D coordinates, gauge and cant in a single operation
Import alignment design from digital or paper plans. Check design information before it goes to the job site
Reduce time for documentation and acceptance.
Capture adjustment and track acceptance data and quickly prepare reports for contractors and quality inspection
Support for industry standard calculations including FAKOP® widening
Satisfy reporting requirements with graphical and list form output of corrections for side and height correction plates

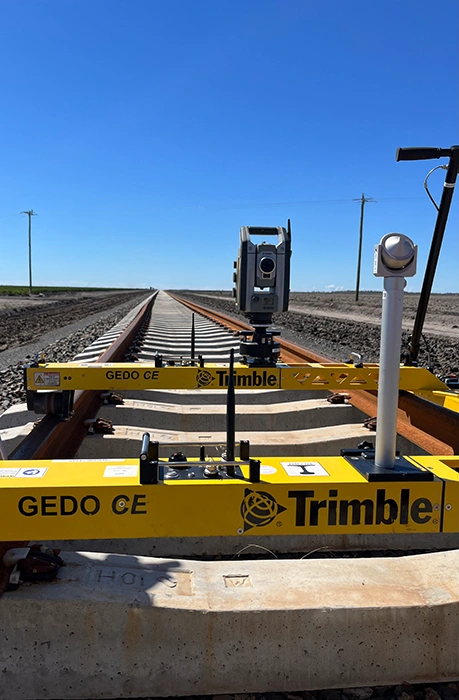

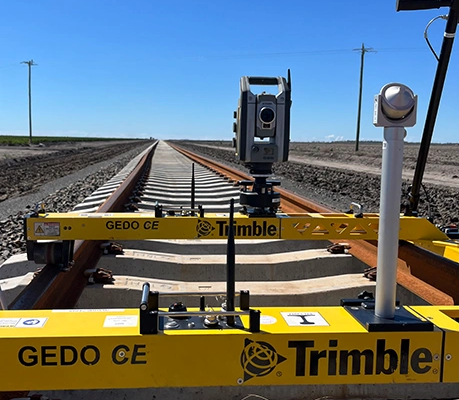

Trimble GEDO Vorsys

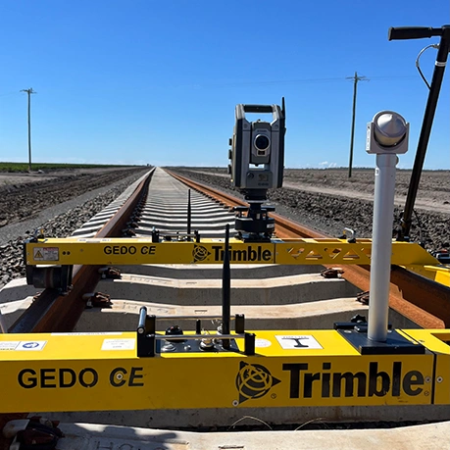

System for Pre-Measuring for Tamping

Overview

Fast, accurate measurement of track conditions is paramount for productive tamping operations. Trimble GEDO in combination with the Trimble GEDO Vorsys field software provides adjustment data to tamping machines quickly and efficiently.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

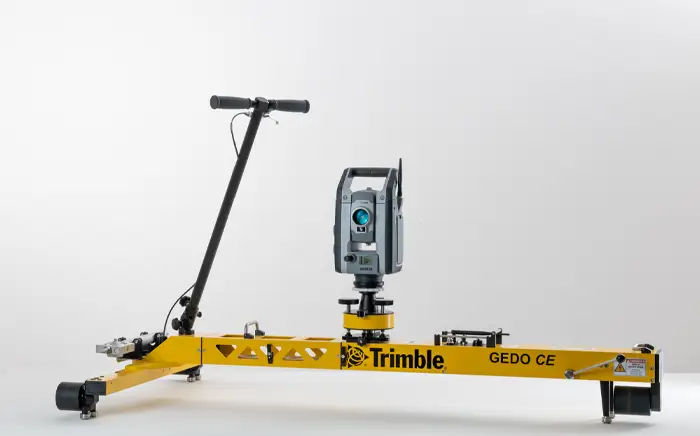

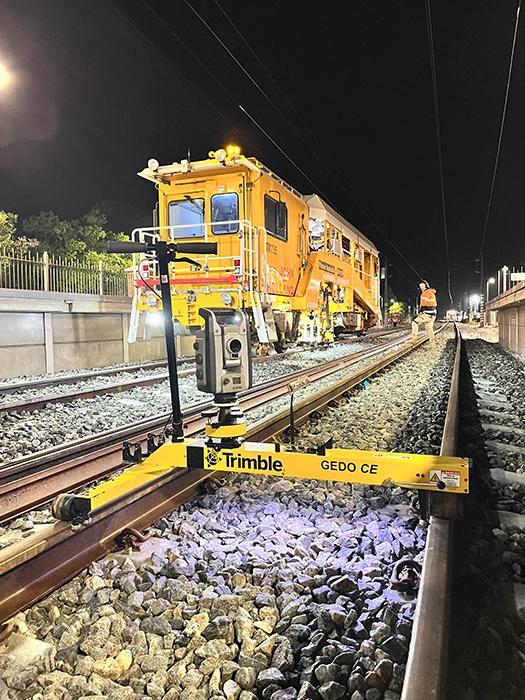

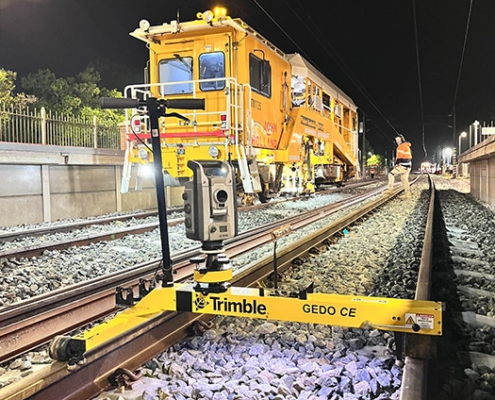

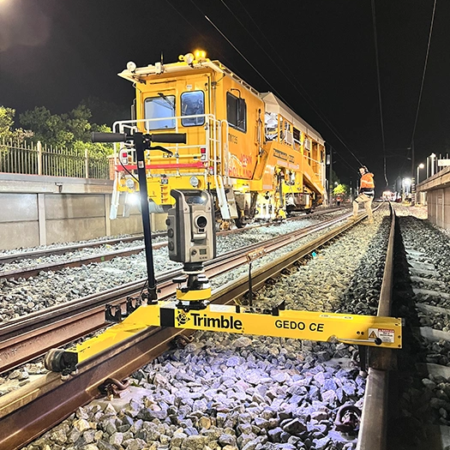

Trimble GEDO Vorsys is an ideal tool for avoiding ballast tamping machines and work crews costly idle time in both conventional and high-speed rail tamping applications.

KEY BENEFITS

Reduce tamping time and costs with rapid delivery of data to the tamping machine
Reduce track downtime for construction and maintenance
Capture track 3D track position, gauge and cant in a single operation
Verify track geometry with accuracy and confidence.
Precise optical positioning and a simple, self-contained trolley provide flexibility and reliable results
Import alignment design from digital or paper plans. Alignment editor lets you check design information before it goes to the job site
Post-tamping measurement reduces rework and provides immediate quality control
Support for industry-standard formats and protocols

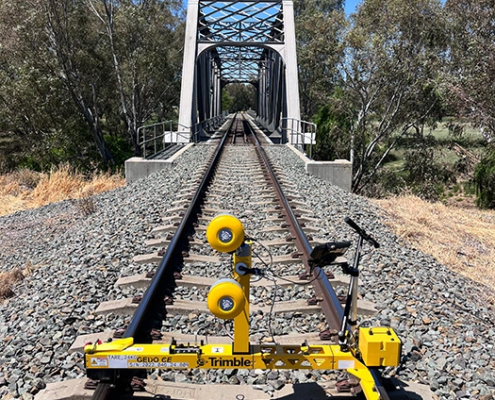

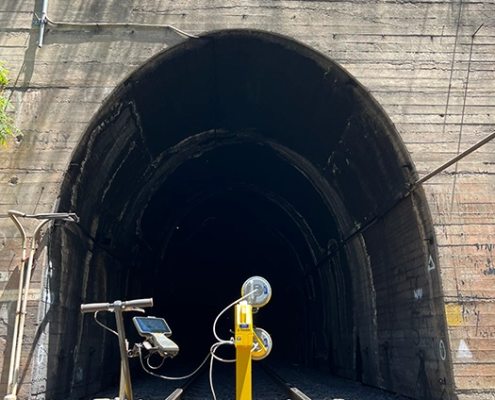

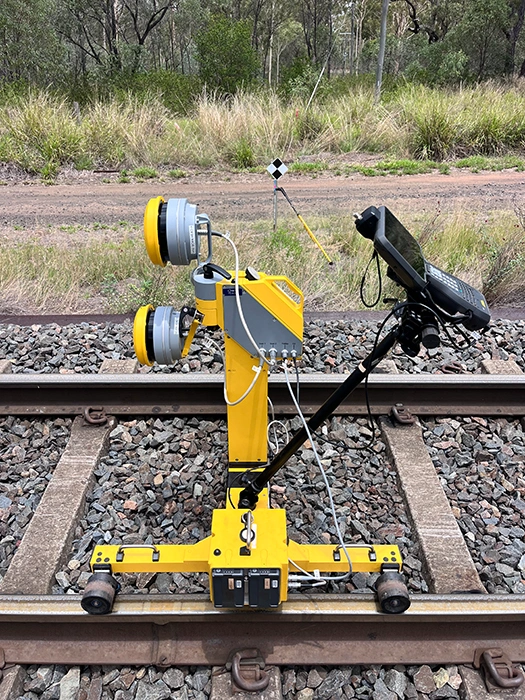

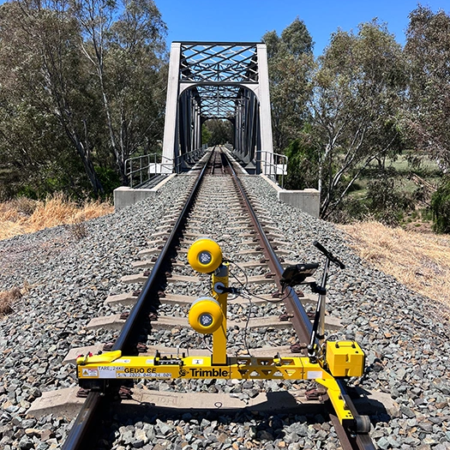

Trimble GEDO GX50

Laser scanning system for kinematic clearance analysis and asset data collection applications

Overview

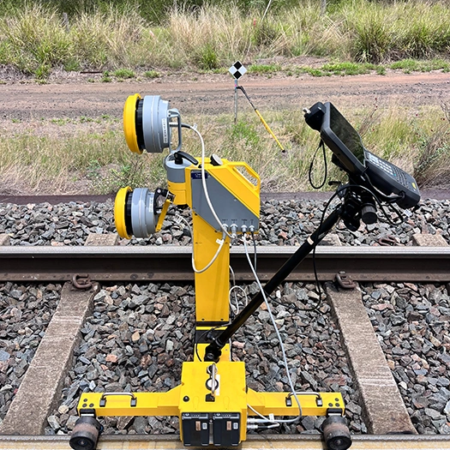

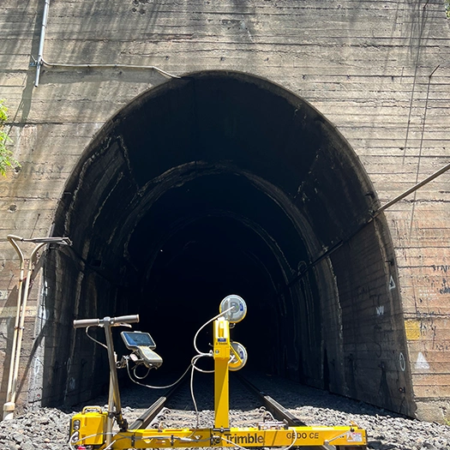

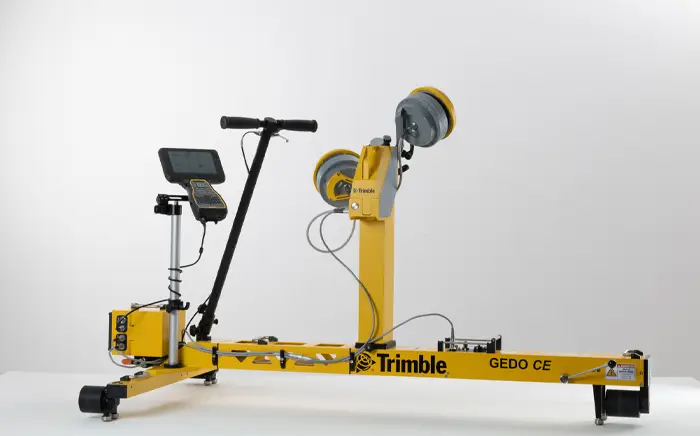

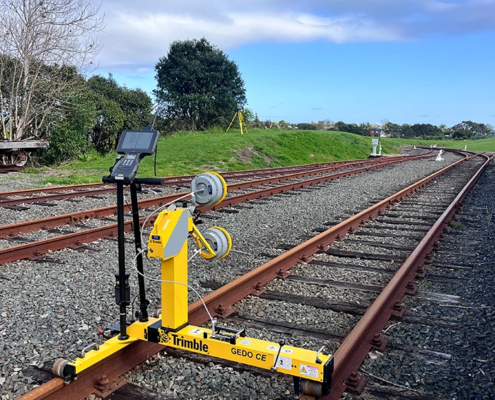

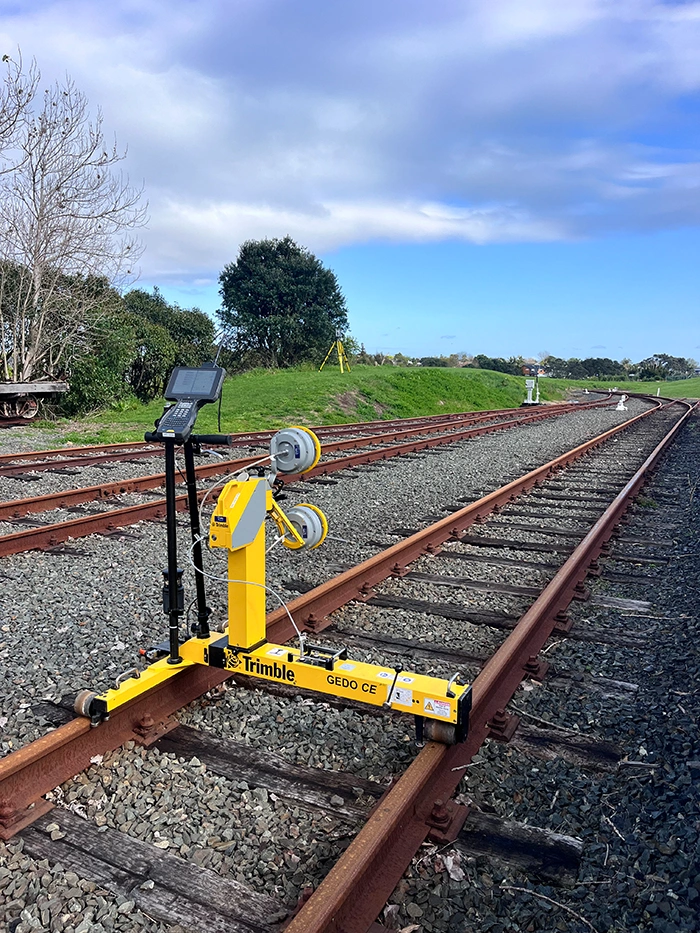

The Trimble GEDO GX50 is a modern and flexible laser scanning system that is designed to operate with Trimble GEDO track measurement systems.

The Trimble GEDO GX50 is available in a Single Head configuration with one scanner and in a dual head configuration with two scanners. The modular system design allows the second scanner to be added later.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

Depending on application specific requirements, the scanners can be mounted in different positions and tilt angles. The scanner positioned perpendicular to the track axis provides an optimum of accuracy for high precision clearance analysis. In the butterfly configuration, objects that are perpendicular to the track become clearly visible.

The high-resolution three-dimensional data obtained with the system quickly and precisely can be used for clearance verification and as-built data collection. In terms of accuracy and resolution, the data provides an excellent basis for modeling in a BIM-compliant design and construction workflow.

Trimble GEDO Scan Systems

The Trimble GEDO GX50 can be combined with the Trimble GEDO CE 2.0 track measurement trolley to form various Trimble GEDO systems. The track measurement trolley measures the track gauge and cant in conjunction with the distance traveled. The basic configuration, Trimble GEDO Scan, allows the acquisition of a purely relative or pseudo-absolute processed point cloud. In the geodetic Trimble GEDO Rec-Scan configuration, the absolute track position is determined using a total station or GNSS receiver. This position is also used for absolute referencing of the point cloud. The Trimble GEDO IMS-Scan and Trimble GEDO IMS-GNSS-Scan systems combine state-of-the-art inertial measurement technology and laser scanner into a multisensor system. The flexible processing allows different types of georeferencing for an absolute referenced point cloud.

APPLICATIONS

Planning, BIM and Construction

Documentation of track corridor state
Spatial data for 3D design modeling
Extensive clearance analysis for current track or new track to be designed
Overhead power line planning
As-built documentation after completion

Operation and Maintenance

Clearance analysis for extra-wide transports and cross-border rail traffic
Narrow-gauge documentation for the track infrastructure owners (e.g. WinLUE for LIRA and Clearroute)

Asset Management

Capturing rail asset objects for inventory documentation

KEY BENEFITS

Utilizing a universal track measurement trolley with modular expansion options
Full 360° measurement provides visibility of all objects at the track
Can be used with one or two scanners
Flexible alignment of scanners for optimal visibility of objects
High measuring frequency and rotation rate allows for fast trolley movement during recording
Uniform power supply and battery hot-swap functionality
Combination with geodetic instruments for absolute referencing of point cloud
High-resolution live display for immediate on-site clearance checks
High productivity and flexibility reduces personnel requirements and lowers costs

Trimble GEDO Scan

System for Maintenance & Asset Management

Overview

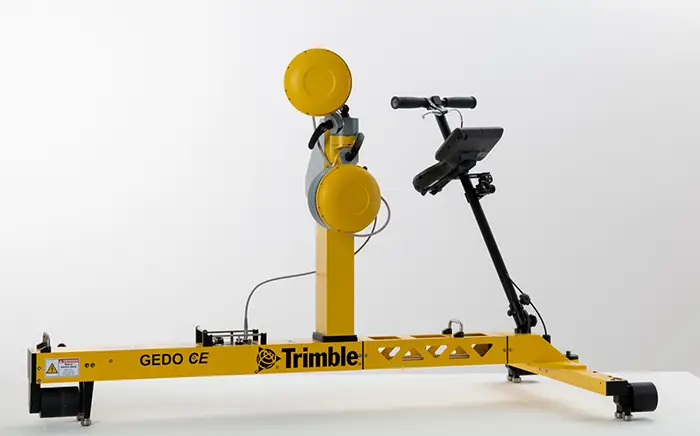

The Trimble GEDO Scan System is an efficient tool to collect detailed information about track and surrounding features. Trimble GEDO in combination with the Trimble GEDO Scan field software quickly gathers precise, high-resolution data for use in track clearance assessments and facilities management.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

Operating in either LOCAL or ABSOLUTE Mode, collected 3D point clouds are used to produce detailed 3D models of tunnels, overpasses, stations, platforms, crossings and other facilities. Using clearance envelopes and 3D models, the system simulates the movement of the railcar through an existing facility or a stretch of track. Potential railcar clearance encroachments against existing and design profiles are automatically detected and reported.

KEY BENEFITS

Simple, self-contained trolley used for Trimble GEDO Scan and other track measuring applications
Helical scanning mode captures ceilings and walls to produce accurate 3D models of tunnels and overpasses
Trimble GEDO Scan Field software runs on the Trimble Tablet rugged PC, controlling scanning operations and data collection of both the scanner and the GEDO trolley
Modular system lets you use the Trimble TX5 , TX6, TX8 or Faro Focus 3D scanner for other survey and facility needs
Workflow and User Interface are consistent with other Trimble GEDO systems to reduce training and increase system productivity
Supports 45° Mode for better object visibility at as-built scans
Neighbour track detection out of the scanning data to survey the scanned but not surveyed track
Chainage view for easy navigation inside the point cloud

Trimble GEDO IMS

For high productivity Track Survey & Asset Data Collection

Overview

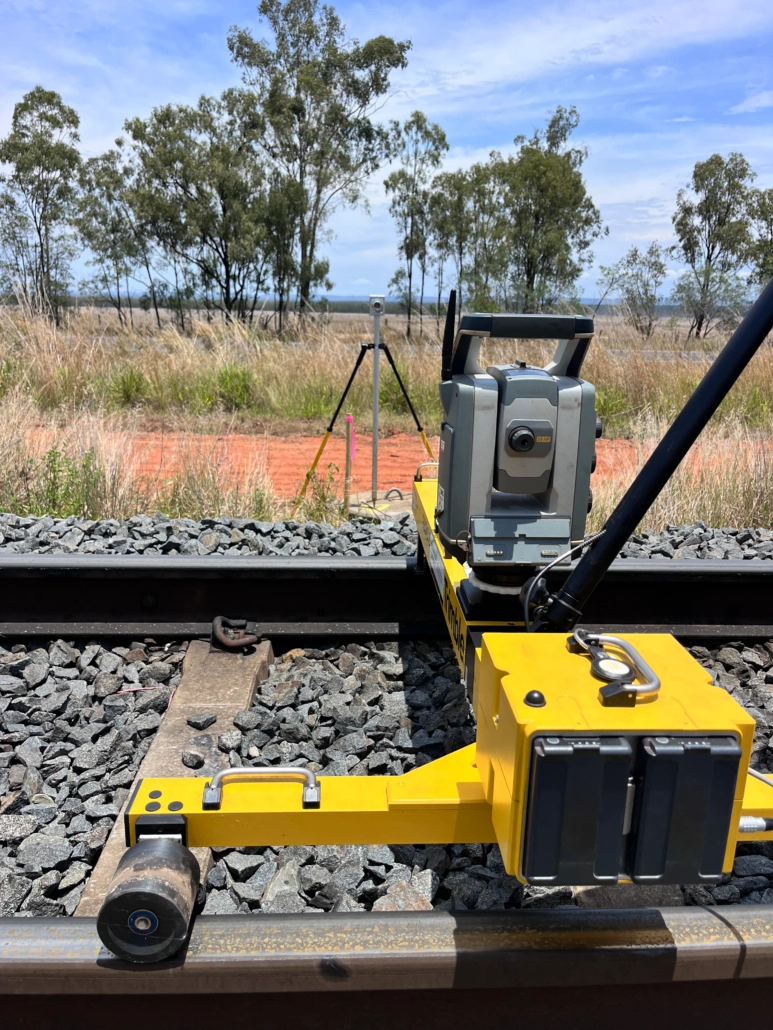

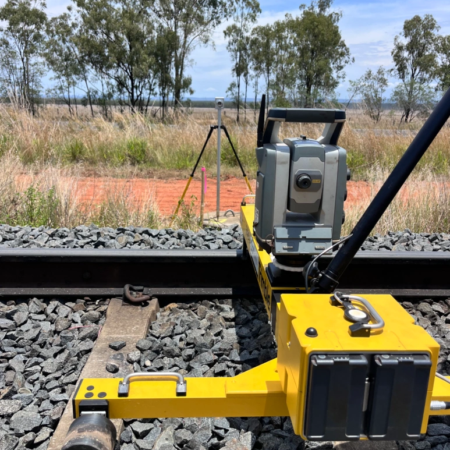

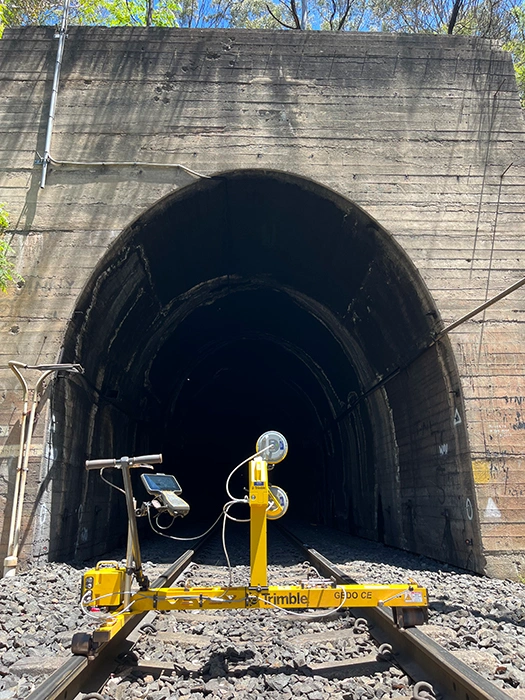

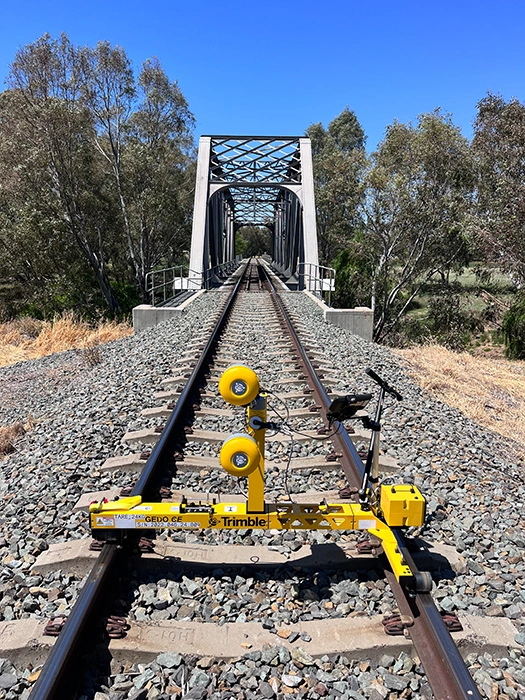

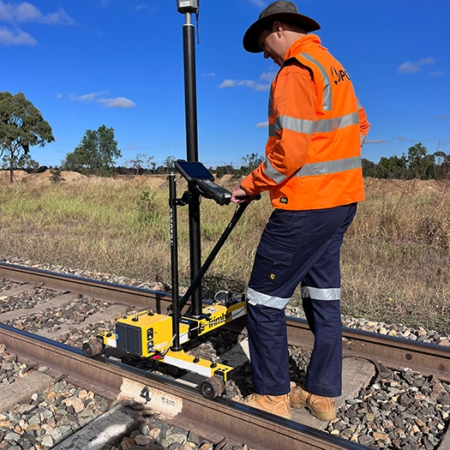

The Trimble GEDO IMS system, consisting of Trimble GEDO CE 2.0 track survey trolley and a high precision IMU (Inertial Measurement Unit), is the basis for running an efficient track survey and asset data collection.
Additional components and sensors can be added to the system to enable the usage of further applications and to guarantee the best performance.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Full description

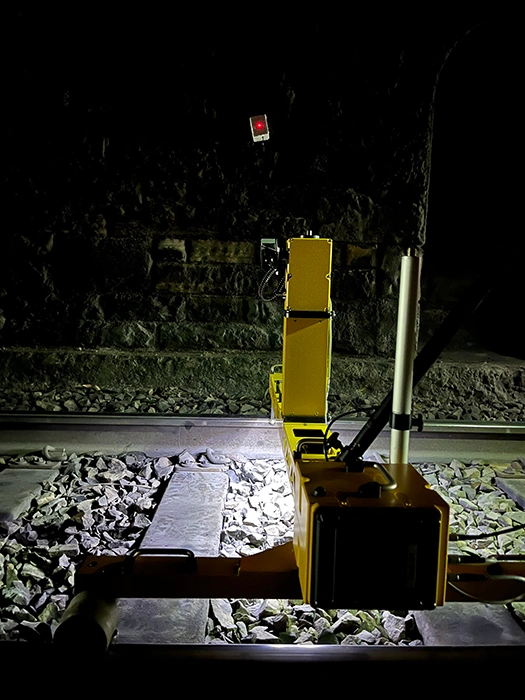

Trimble GEDO Profiler
Within the Trimble GEDO IMS system the Trimble GEDO Profiler 2.0 is used to measure marked reference points along the track. Based on these measurement, the trajectory generated by the Trimble GEDO IMS system gets referenced. The resulting track position can be used for the asset data collection.

Trimble GEDO Scan
The combination of Trimble GEDO Scan and Trimble GEDO IMS provides a highly productive survey and mapping system for assets close to the track. It produces a dense 3D point cloud with an absolute reference. Out of the point cloud asset data information can be collected and clearance checks can be processed. As well the data can be used as an as-built survey before, during and after construction within a BIM project.

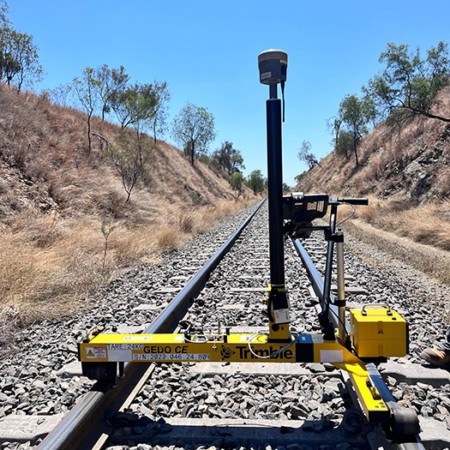

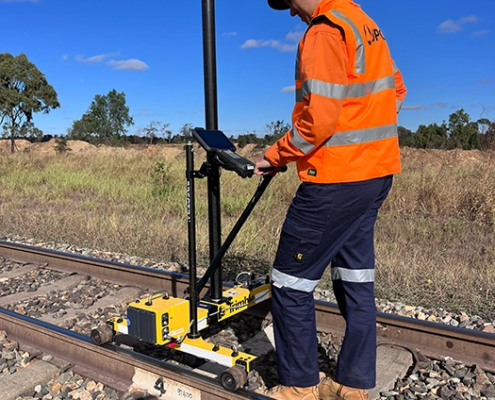

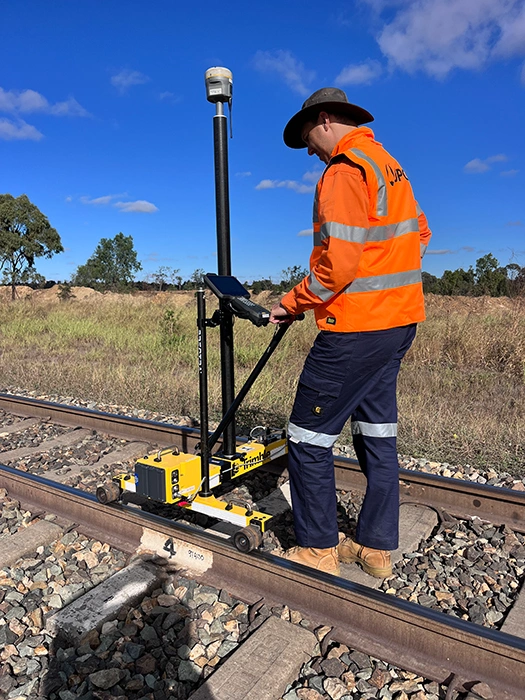

Trimble GEDO IMS+GNSS

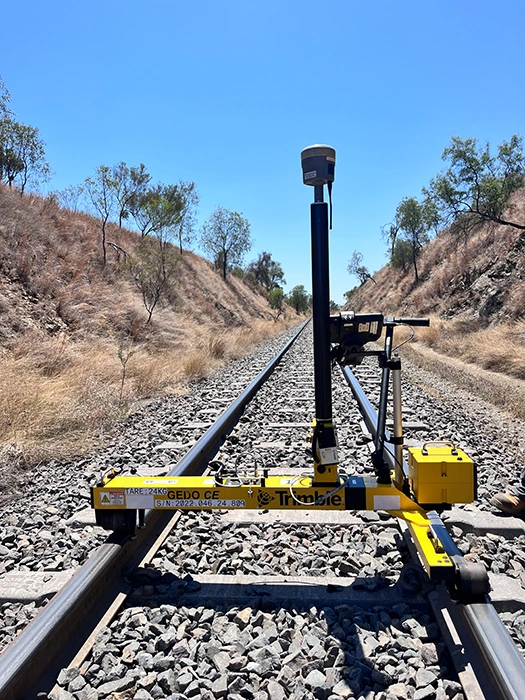

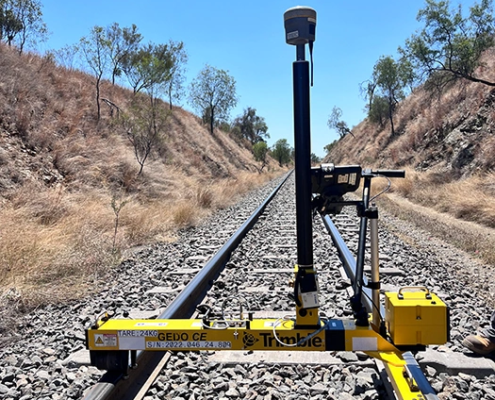

Combining the Trimble GEDO IMS system with Trimble GNSS technology enables track survey without reference points based on a given GNSS reference system. Thereby collected data can be used to create a new or modified track design. Reference points can be established and measured during the survey run. This allows the usage of the system for furthe survey work during the re-construction phase.

KEY BENEFITS

Simple and self-contained trolley captures track position, gauge and cant in a single operation
Measure long portions of track without disruption to normal traffic
Flexible combination with additional sensors fitting to the application for best performance
Demanding geodetic station setup with related restrictions no longer needed
Short initialization time allows rapid on-site use
Easy to use and clear display of the results
Continuous high-resolution data collection for flexible analysis
Internal quality control within the measurement process on site

Trimble GEDO Track Measuring Bar

Overview

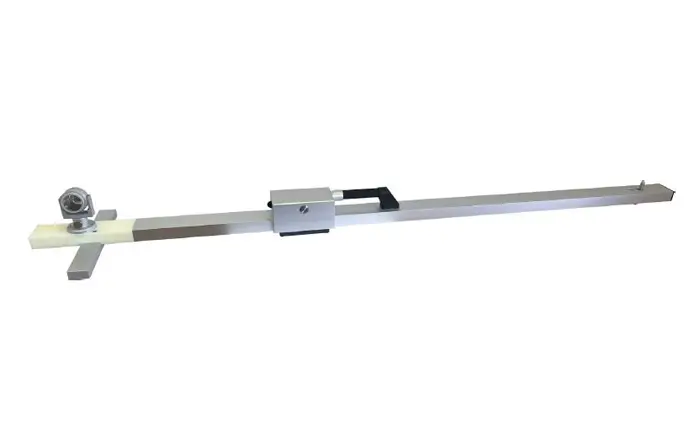

For slab-track construction or direct fix, the Trimble GEDO Track Measuring Bar uses the same Trimble GEDO Track workflow as the Trimble TMD, but due to its portability it is much more flexible and productive on a busy construction site.

Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

GEDO NovaTrack

Intelligent Track Design

Overview

Software for semi-automatic calculation of new alignments or new proposed track based on GEDO measurements.

Product Data Sheet
Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

Trimble GEDO NovaTrack takes into consideration various specifications and limiting factors for smoothing design. Interactive graphical views with editing commands allow the end user to quickly generate a workable solution. There is a direct data exchange with GEDO Office to use GEDO measurements and return the alignment (axis, gradient, superelevation). This can be used immediately for as-build comparison and preparation of tamping data.

KEY BENEFITS

Full compatibility with Trimble GEDO track measurement systems
Automatic and semi-automatic reverse calculation of alignments
Advanced measurement analysis and error filtering using heuristic regression methods
Formation of alignment elements from curvature and direction diagrams
Calculation and graphics update on-the-fly
Calculation of cant and speed parameters for individual track elements
Support of user defined rules for geometry, speed and cant limitations

Trimble GEDO Scan Office 2.0

Software for Data Processing and Analysis

Overview

GEDO Scan Office 2.0 software contains features and functionalities to edit, analyze and evaluate 3D scan data set. To ensure full compatibility with other Trimble scanning software packages (i.e. Trimble RealWorks and TBC Scanning), it is based on the common Trimble Scan Data Engine platform.

Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

Trimble GEDO Scan Office

The GEDO Scan Pre-Processing Module pre-processes GEDO Scan measurements.
Purely relative measurements are then available immediately. Absolute measurements as geo-referenced 3D point cloud for analysis after synchronization with the track geometry.

Trimble GEDO Scan Office Point Cloud Module
Point Cloud Module enables track-specific analysis of the point cloud.
The distances of objects relative to the track position or between objects can be measured. The clearance can be checked with a static frame or on the basis of a wagon model. The position of the adjacent track can be detected from the scan. Overhead lines are detected and the distances to the track position are calculated. Points can be taken directly from the point cloud and line objects can be registered automatically. Cross profiles generated along the route are further processed and vectorized with Trimble GEDO Scan Analysis. After automatic dimensioning, the DXF export takes place. In addition to the data kinematically recorded with the Trimble GEDO Scan System, static laser scan data and point clouds can also be processed by the Mobile Mapping System.

Trimble GEDO Scan Office – Additional Modules
Additional modules (i.e WinLUE, Clearroute, Banedanmark) allow the export of analysis results according to the requirements of the infrastructure operators for the respective clearance databases.

KEY BENEFITS

Simple and clear User Interface and Operation
Modular and easily upgradeable
Flexible data adjustment and recalculation taking into account any data or framework modifications
Individual definition of parameters for calculation and output
Concise Quality Reports

Trimble GEDO Office 2.0

Software for Data Processing and Analysis

Overview

Trimble GEDO Office 2.0 software integrates field and office operations. With advanced capabilities for data management and analysis, the GEDO Office suite provides a seamless flow of information and results. Simple operation and concise quality reports add to the confidence in the system performance.

Trimble GEDO Systems Brochure
Trimble GEDO Railway Solutions Video

Description

Trimble GEDO Office Base
Module for alignment data input and import of design data.
Standard design data formats are supported (e.g. Verm.ESN, LandXML). Alignment data can be checked to verify the use of the data in the field

Trimble GEDO Office Module Rec
Module for processing GEDO Rec field data.
Station setups can be re-calculated. Different matching algorithms are used to connect the overlapping areas. Coordinate export for the left rail, center line and right rail together with the cant and gauge values. Based on alignment data the differences between design and as-built are calculated

Trimble GEDO Office Module Vorsys
Module for processing GEDO Vorsys field data.
Measured data can be re-processed based on another design or new reference point coordinates.
Processing of measurements taken without alignment data for track survey purposes.

Trimble GEDO Office Module IMS
Module for processing GEDO IMS field data.
Measured data segments can be analyzed and re-processed based on new reference point coordinates as well as merged to a line.
The differences between design and as-built are calculated.

Trimble GEDO Office Module Tamp
Module for data preparation for tamping machines.
Measured and processed data from GEDO Rec, GEDO Track, GEDO Vorsys and GEDO IMS measurements can be used. A graphical interface allows an easy ramp definition by ocusing on minimum lift values, maximum lift and shift values and other constraints. Data for all common tamping machines can be output.

Trimble GEDO Office Module Quality
Generates reports on the quality of the track.
In addition to flexible travel chord evaluations, special calculations can be carried out and special formats such as MKS (manual replacement measurement DB AG), Speed Raiser (Network Rail) or TUCRail (Belgium) can be created.
For slab track projects, the necessary corrections are optimized and correction lists are created.

Trimble GEDO Office Module Monitoring
Module for comparison of measurements from different epochs for monitoring tasks and control of tamping work.

KEY BENEFITS

Simple and clear User Interface and Operation
Modular and easily upgradeable
Flexible data adjustment and recalculation taking into account any data or framework modifications
Individual definition of parameters for calculation and output
Concise Quality Reports
