GNSS SYSTEMS

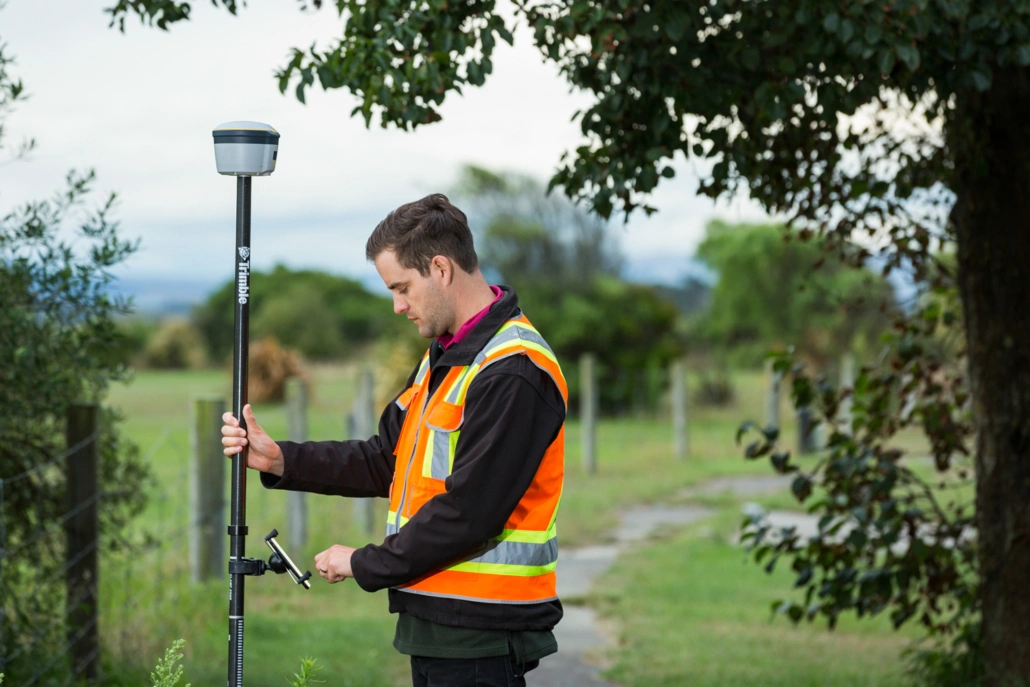

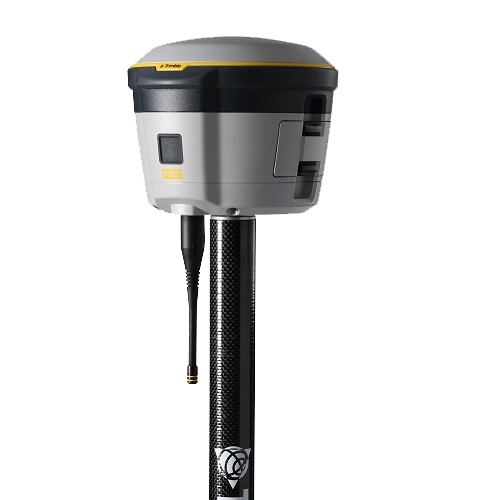

Rely on the Trimble® R580 GNSS system for survey precision that keeps you productive. Equipped with the industry-leading Trimble ProPoint® GNSS engine, this integrated receiver offers exceptional accuracy and greater efficiency in a wider range of locations.
VIDEO
Built for durability and precision, ready to tackle tough surveying conditions.
The Trimble R580 enhances accuracy and reliability in challenging urban and rural environments, leveraging advanced GNSS technologies to optimise productivity and deliver maximum results.
The Trimble R580 utilises Trimble ProPoint technology, enabling precise work in challenging locations and enhancing field productivity like never before.
The reliable R580 features proven technology to combat anti-spoofing and multipath issues, ensuring confidence in every measurement and point you capture.
The Trimble R580 is a reliable, integrated receiver designed for everyday survey-grade workflows.
GNSS TECHNOLOGY
Achieve exceptional performance in challenging GNSS environments, including areas near trees and buildings.
CHIPSET TECHNOLOGY
Supports rapid processing, anti-spoofing capabilities, and tracks all current and future constellations for precise positions in diverse locations.
MULTIPATH MITIGATION
Get real-time, always-on corrections directly from the field with enhanced connectivity options, including dual-band UHF radio and 4G LTE modem.
Utilise the Trimble CenterPoint® RTX corrections service for real-time corrections via satellite or internet, eliminating the need for a local base station or VRS network.
| Max. Precision | Channels | Antenna | UHF Radio | RTX Compatible | xFill | Memory | Cellular | Satellites | Additional Features | |
|---|---|---|---|---|---|---|---|---|---|---|
| Trimble R980 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450/900 MHz | Yes | Yes | 9 GB | 4G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R12i | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450 MHz | Yes | Yes | 6 GB | 3.5G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R12 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450 MHz | Yes | Yes | 3.5G | 3.5G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint |
| Trimble R780 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450/900 MHz | Yes | Yes | 9 GB | External | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R580 | 10 mm H/20 mm V | 336 | Integrated | Receive 450 MHz | Yes | Yes | 256 MB | External | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS | ProPoint |
| Trimble R2 | 10 mm H/20 mm V | 220 | Integrated | Receive 450 MHz | Yes | No | 48 MB | External | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS | — |
