GNSS SYSTEMS
The Trimble® R780 GNSS receiver offers configurable options and expandable features. Its robust GNSS positioning technologies provide reliable, ultra-durable performance, enhancing productivity and flexibility in any environment.
VIDEO
Durable. Precise. Ready for Anything.
Boost accuracy and efficiency with the Trimble® R780, engineered with essential features to tackle even the most demanding surveying challenges with ease.
Achieve exceptional precision with the Trimble® R780 receiver, featuring industry-leading ProPoint® technology. Rely on it for accurate results even in the most challenging GNSS environments.
Safely and easily stake out or measure points without levelling the pole, thanks to Trimble TIP™ technology.
With the R780, benefit from continuous coverage and flexible configurations designed to adapt to your evolving survey requirements.
FLEXIBLE LICENSES
Available as either a perpetual or yearly subscription license, choose the receiver configuration and license term that best fits your current and future survey needs.
SURVEY FASTER

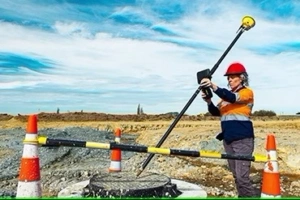

Transform your surveying with Trimble TIP™ technology. Accurately stake out or measure points with IMU-powered tilt compensation, eliminating the need to level the pole.
ELEVATE YOUR WORK
Trimble CenterPoint RTX™ delivers fast, accurate GNSS corrections wherever you are, ensuring you never miss a beat.
With Trimble xFill® technology, experience continuous RTK coverage even if your connection is lost, making downtime in the field a thing of the past.
| Max. Precision | Channels | Antenna | UHF Radio | RTX Compatible | xFill | Memory | Cellular | Satellites | Additional Features | |
|---|---|---|---|---|---|---|---|---|---|---|
| Trimble R980 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450/900 MHz | Yes | Yes | 9 GB | 4G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |

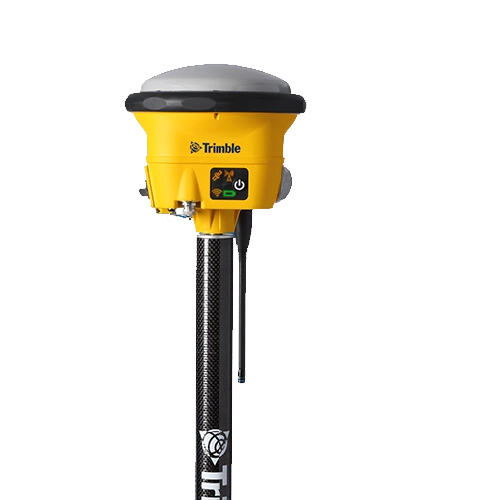

| Trimble R12i | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450 MHz | Yes | Yes | 6 GB | 3.5G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R12 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450 MHz | Yes | Yes | 3.5G | 3.5G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint |
| Trimble R780 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450/900 MHz | Yes | Yes | 9 GB | External | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R580 | 10 mm H/20 mm V | 336 | Integrated | Receive 450 MHz | Yes | Yes | 256 MB | External | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS | ProPoint |
