ROBOTIC TOTAL STATIONS

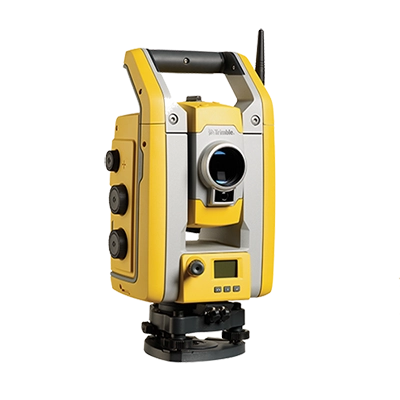

The Trimble S5 robotic total station combines reliable Trimble technologies like MagDrive™, SurePoint™, and DR Plus EDM for efficient, high-accuracy performance.
With advanced optics for precise data capture, the Trimble S5 ensures accurate results with no rework needed.
COMPLETE MORE JOBS

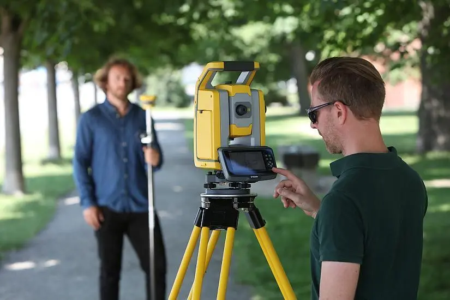

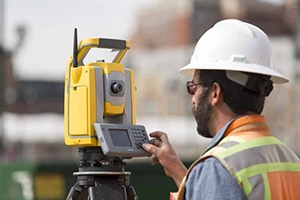

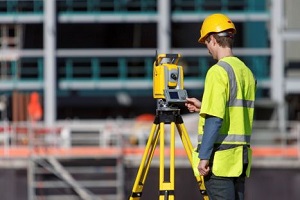

Requiring just one operator, the Trimble S5 maximises productivity with Active Tracking for reliable prism tracking in tough environments.
SILENT ROTATION
Quickly turn to points with incredible speed, rotating at 115 degrees per second with the precision of Trimble MagDrive™ technology.
TRACK AT ALL TIMES
Add our optional device tracking software to monitor your S5 total station’s location, ensuring it’s tracked all day, every day.

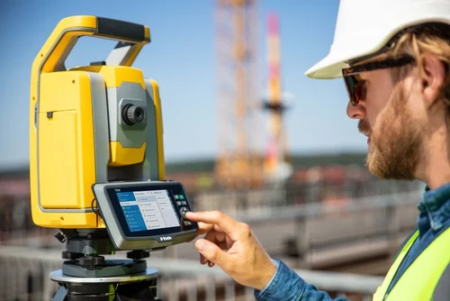

Select a Trimble controller with Trimble Access™ field software for efficient site workflows and use Trimble Business Center for office deliverables.
| Angular Accuracy | EDM Technology | EDM Accuracy | Maximum Range | Technology Standard on All Models | Model-dependent Features | |
|---|---|---|---|---|---|---|
| Trimble SX12 | 1″ | Lightning 3DM | 1 mm + 1.5 ppm (Prism) / 2 mm + 1.5 ppm (DR) | 5,500 m | Scanning, VISION, Autolock, Magdrive, SurePoint, Plummet Camera, Target Illumination Light | Focusable Laser Pointer |
| Trimble S9 HP | 0.5″ or 1″ | DR HP | 0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR) | 7,000 m | Autolock, Magdrive, SurePoint, FineLock, Active Tracking | Long Range FineLock, Tracklight, VISION |
| Trimble S9 | 0.5″ or 1″ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint, FineLock, Active Tracking | Long Range FineLock, Tracklight, VISION, SureScan |
| Trimble S7 | 1″, 2″, 3″ or 5″ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint | Tracklight, Active Tracking |
| Trimble S5 | 1″, 2″, 3″ or 5″ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint | Tracklight, Active Tracking |
