ROBOTIC TOTAL STATIONS

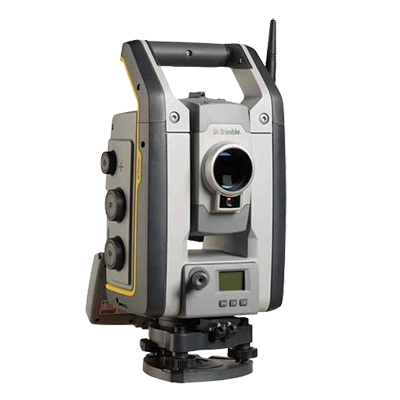

The TrimbleĀ® S7 total station, a feature-rich robotic solution with an integrated radio, enables single-user operation, making it the only instrument you need on the jobsite to maximise efficiency daily.
Collect survey data from a distanceāand independentlyāwith this rugged total station, delivering the accuracy and power you need.
OPERATE REMOTELY
The included radio allows for remote operation with just one operator. Utilise Active Tracking technology to consistently track your prism, even in the most demanding environments.
SILENT ROTATION
Quickly turn to points with incredible speed, rotating at 115 degrees per second with the precision of Trimble MagDriveā¢ technology.
FULL FEATURED
Trimble SurePointā¢ technology eliminates real-time errors caused by slight misleveLling, such as when a tripod shifts due to temperature changes in the ground.
Trimble offers a comprehensive solution from the field to the office with Trimble Access field software and Trimble Business Center.
| Angular Accuracy | EDM Technology | EDM Accuracy | Maximum Range | Technology Standard on All Models | Model-dependent Features | |
|---|---|---|---|---|---|---|
| Trimble SX12 | 1ā³ | Lightning 3DM | 1 mm + 1.5 ppm (Prism) / 2 mm + 1.5 ppm (DR) | 5,500 m | Scanning, VISION, Autolock, Magdrive, SurePoint, Plummet Camera, Target Illumination Light | Focusable Laser Pointer |
| Trimble S9 HP | 0.5ā³ or 1ā³ | DR HP | 0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR) | 7,000 m | Autolock, Magdrive, SurePoint, FineLock, Active Tracking | Long Range FineLock, Tracklight, VISION |
| Trimble S9 | 0.5ā³ or 1ā³ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint, FineLock, Active Tracking | Long Range FineLock, Tracklight, VISION, SureScan |
| Trimble S7 | 1ā³, 2ā³, 3ā³ or 5ā³ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint | Tracklight, Active Tracking |
| Trimble S5 | 1ā³, 2ā³, 3ā³ or 5ā³ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint | Tracklight, Active Tracking |
FIELD SOFTWARE
Complete surveying solution for digital workflows.
