ROBOTIC TOTAL STATIONS

Trimble S9

Take charge of your work process.

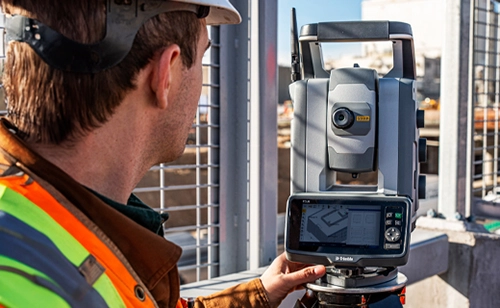

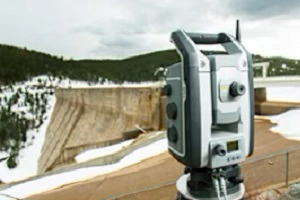

The Trimble® S9 is a high-performance robotic total station designed to excel in challenging monitoring, rail, mining, and tunnelling applications, providing outstanding speed, accuracy, and reliability.

Talk to Sales

BENEFITS AND PERFORMANCE

Leveraging advanced technology and precision engineering, the Trimble® S9 robotic total station delivers the accurate measurements needed for specialised projects, including monitoring and tunnelling.

Spec Sheet

Key specifications

The Trimble S9 total station offers the performance and reliability you need to work with confidence and efficiency, regardless of the project.

Angular accuracy - 0.5" or 1"
EDM technology - DR PLUS
Accuracy - 1.0 mm + 2 ppm Prism/2.0 mm + 2 ppm DR

Features and capabilities

GET THE RIGHT TOOLS

Customise your total station

Select from VISION, FineLock, Long Range FineLock, or Tracklight technologies to meet project demands and ensure success.

FINELOCK TECHNOLOGY

Precision when it matters most

FineLock detects targets with high precision, eliminating interference from surrounding prisms for demanding applications. Long Range FineLock extends this capability for even greater distance and accuracy.

TRIMBLE VISION

Document your work in the field

UtiliSe Trimble VISION to live-stream video to your controller and easily aim your total station with a tap in Trimble Access™ field software. Capture images to document shots or panoramas for station setup documentation.

KEEP WORK MOVING

Field-to-office workflows

Customisable workflows in Trimble Access™ enable crews to complete tasks faster and more efficiently.

Compare Robotic Total Stations

	Angular Accuracy	EDM Technology	EDM Accuracy	Maximum Range	Technology Standard on All Models	Model-dependent Features
Trimble SX12	1″	Lightning 3DM	1 mm + 1.5 ppm (Prism) / 2 mm + 1.5 ppm (DR)	5,500 m	Scanning, VISION, Autolock, Magdrive, SurePoint, Plummet Camera, Target Illumination Light	Focusable Laser Pointer
Trimble S9 HP	0.5″ or 1″	DR HP	0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR)	7,000 m	Autolock, Magdrive, SurePoint, FineLock, Active Tracking	Long Range FineLock, Tracklight, VISION
Trimble S9	0.5″ or 1″	DR PLUS	1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)	5,500 m	Autolock, Magdrive, SurePoint, FineLock, Active Tracking	Long Range FineLock, Tracklight, VISION, SureScan
Trimble S7	1″, 2″, 3″ or 5″	DR PLUS	1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)	5,500 m	Autolock, Magdrive, SurePoint	Tracklight, Active Tracking
Trimble S5	1″, 2″, 3″ or 5″	DR PLUS	1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)	5,500 m	Autolock, Magdrive, SurePoint	Tracklight, Active Tracking
