DATA COLLECTORS

Trimble TDC6

Effortless Flexibility

Trimble TDC6 Data Collector is a powerful, versatile, and cost-effective solution for surveying and mapping. Use it standalone, with a GNSS receiver, or as an onboard total station controller.

Trimble TDC6

VIDEO

Small yet powerful

The Trimble TDC6 is compact and lightweight, offering powerful features to optimise field workflows.

BENEFITS AND PERFORMANCE

The TDC6 is an advanced, rugged, and highly portable tool designed for exceptionally productive surveying and GIS field data collection.

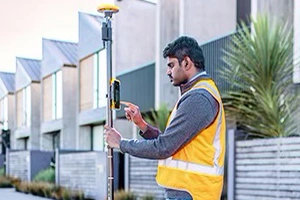

Trimble TDC6 Data Collector on pole

Productive Workflows

Supports powerful Trimble Access™ and Trimble TerraFlex® field software, along with third-party applications like Esri® ArcGIS® Field Maps.

Cost-Effective

The high-performance TDC6 delivers reliable Trimble quality in an affordable solution that fits your budget and workflow.

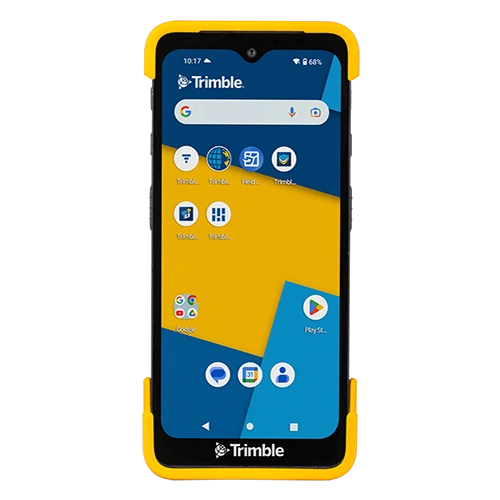

TDC6

Key specifications

Featuring an intuitive Android™ operating system, 5G connectivity, and a sleek design, the TDC6 effortlessly manages field work.

  • 287 g/10 oz - Lightweight, slim form factor

  • Android 12 OS - Secure and upgradeable

  • Worldwide 5G - Integrated cellular data

Features and capabilities

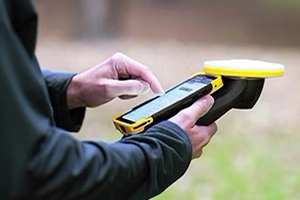

Trimble TDC6 with handle

FLEXIBLE WORKFLOWS

Built for any project

Use the TDC6 as a standalone GIS data collector, with a GNSS receiver, or as an onboard total station controller for productive fieldwork.

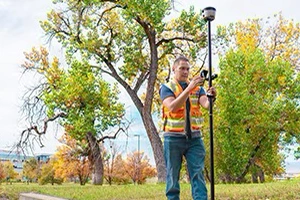

Trimble TDC6 on range pole

PEACE OF MIND

Security and longevity

The option to upgrade to future operating system versions ensures user continuity and peace of mind with the latest Android security features

Trimble TDC6 on range pole

STAY CONNECTED

Field-to-office connectivity

Stay connected and transfer data between field and office quickly with on-board Wi-Fi and 5G capabilities.

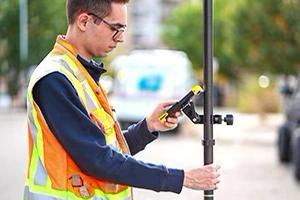

Trimble TDC6 in the field

BUILT TO LAST

Work hard for longer

The TDC6 excels in tough conditions with its military-grade build and unique design, plus a hot-swappable battery for extended job site use.

Compare Controllers and Tablets


Operating system
Screen size
Screen type
Processor
Memory
Data storage
Environmental
Wireless radios
Camera
GNSS accuracy
Internal GPS with SBAS
Satellites

Used with
CONTROLLERS













Trimble TSC710
Android 14
17.8 cm/7"
Multi-touch
Qualcomm QCS6490
8 GB
128 GB UFS Flash Memory
IP68
Wi-Fi, 5G
Rear
4m
GPS yes, not SBAS
L1 C/A, GPS/GLONASS/BeiDou/Galileo/QZSS
Trimble Access™
Trimble TSC7
Windows 10
17.8 cm/7"
Multi-touch
Intel Apollo Lake-N4200, 64-bit quad-core
8 GB
64 GB
IP67
Bluetooth, Wi-Fi, 4G
Front and rear
2-4 m
Yes
Integrated u-blox NEO-M8N, L1, GPS/GLONASS/BeiDou
Trimble Access
Trimble TCU5
Android 7.1.1
12.7 cm/5.0”
Multi-touch
800 MHz
2 GB
16 GB
IP65
via Wi-Fi
No
-
No
-
Trimble Access™
Trimble TSC510
Android 14
12.7 cm/5”
Multi-touch
Qualcomm QCS6490
8 GB
128 GB UFS Flash Memory
IP68
Wi-Fi, 4G
Rear
4 m
GPS yes, not SBAS
Frequency L1 C/A/GPS/GLONASS/BeiDou/Galileo/QZSS
Trimble Access
Trimble TDC6
Android 12
16 cm/6.3"
Multi-touch
2.7 GHz
6 GB
64 GB
IP67
Bluetooth, Wi-Fi, 5G
Front and rear
2-4 m
Yes
GPS/GLONASS/Galileo/BeiDou/QZSS
Trimble TerraFlex, Access, Penmap for Android, Esri Field Maps
TABLETS













Trimble T110
Windows 11
25.6 cm/10.1"
Multi-touch
Intel Core Ultra 7
32 GB
1 TB
IP65
4G LTE
Rear
2-4 m
Yes
Beidou, Galileo, GLONASS, GPS L1 C/A, QZSS
Trimble Access, Trimble Perspective, Trimble TerraFlex
Trimble T100
Windows 11
25.6 cm/10.1"
Multi-touch
Intel i5
16 GB
512 GB
IP65
4G LTE
Rear
<10 m
Yes
Beidou, Galileo, GLONASS, GPS L1 C/A, QZSS
Trimble Access, Trimble Perspective, Trimble TerraFlex
Trimble T7
Windows 10
17.8 cm/7"
Multi-touch
Intel Apollo Lake
8 GB
128 GB
IP65/IP68
4G LTE
Front and rear
2-4 m
Yes
Integrated u-blox NEO-M8N, L1, GPS/GLONASS/BeiDou
Trimble Access, Trimble TerraFlex
